Embedded technologies
Built-In calibration and optional 4-P testing

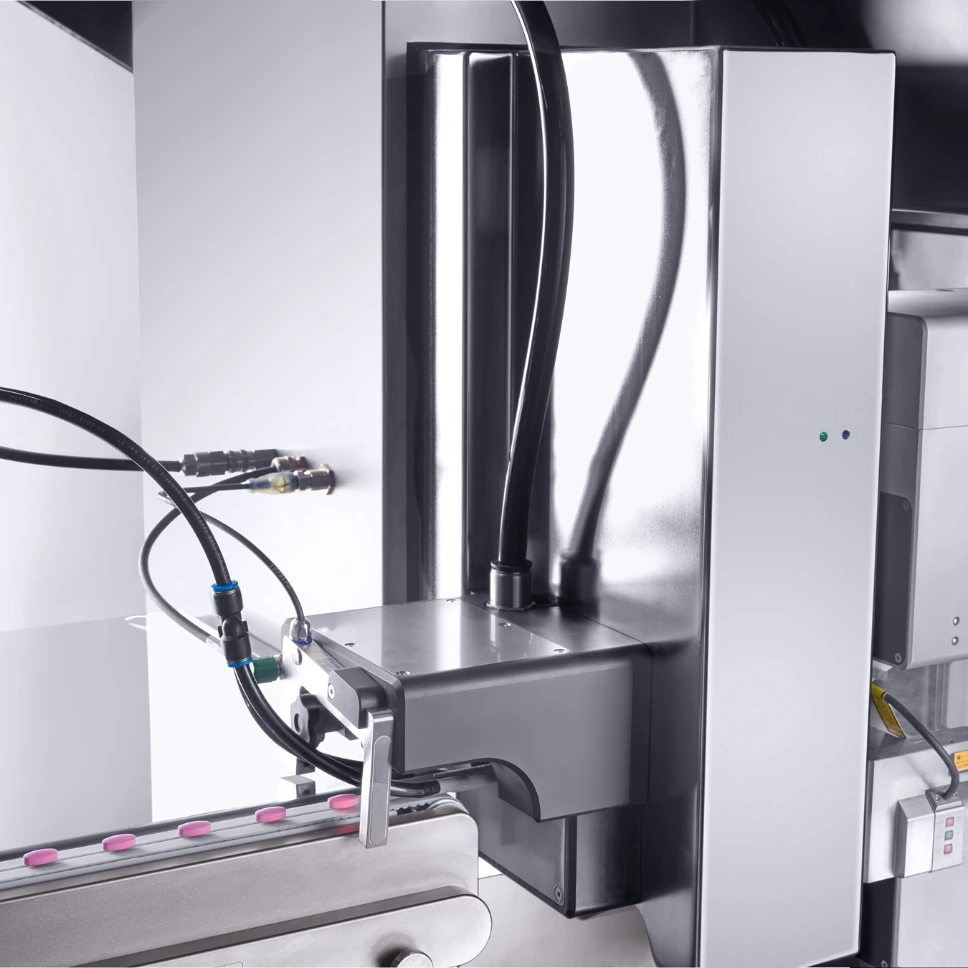

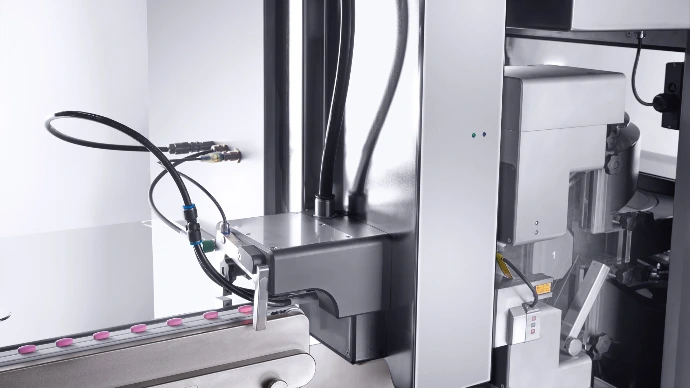

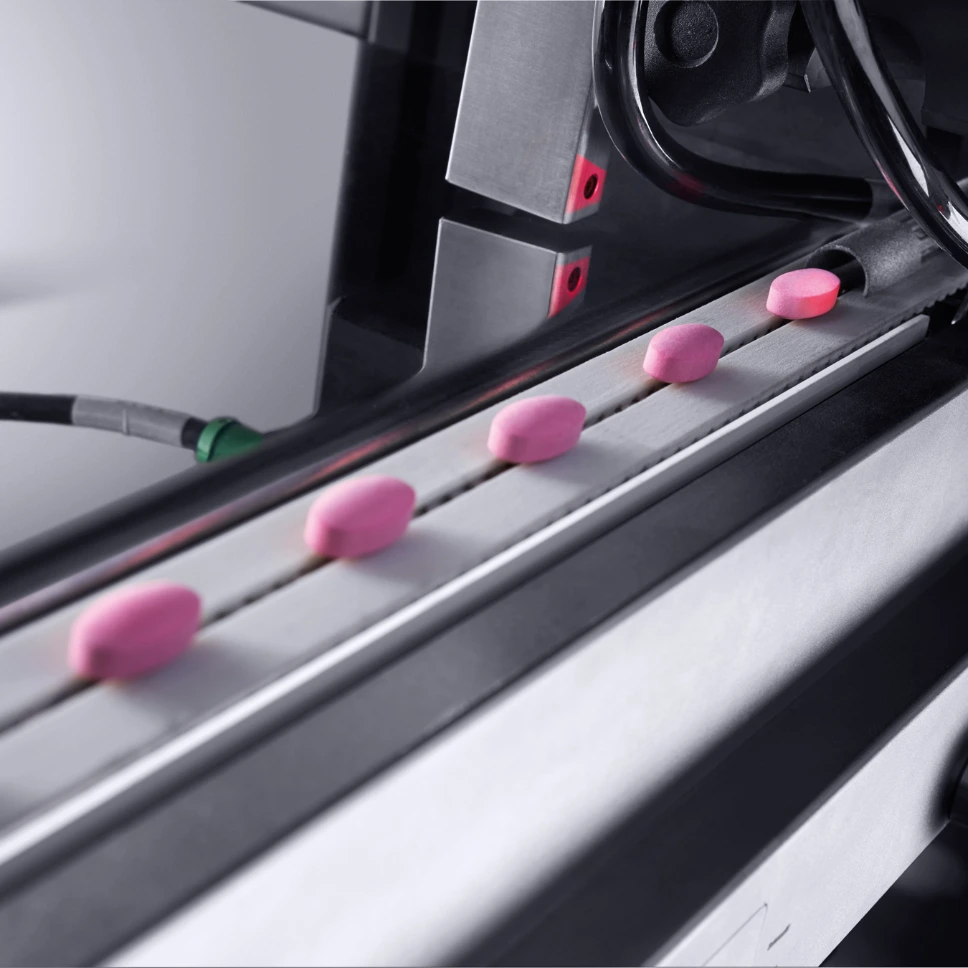

3D microwave resonator

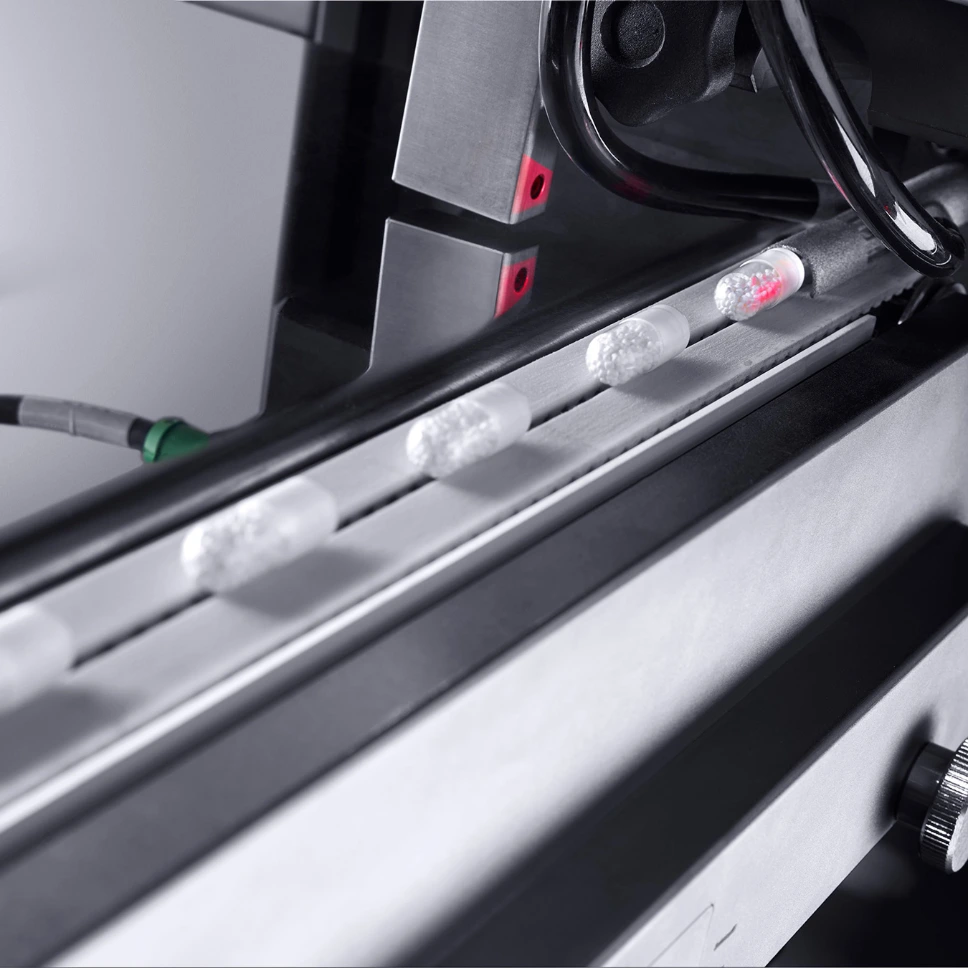

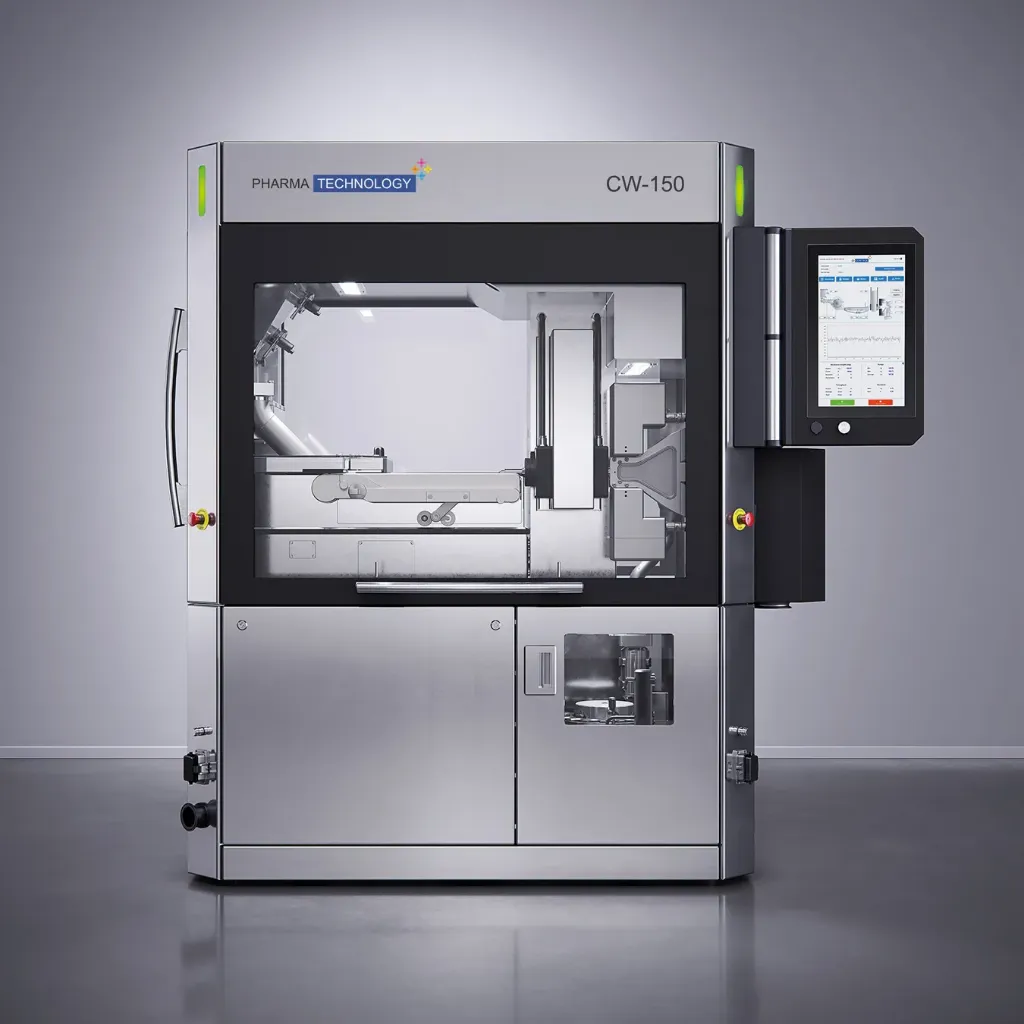

At the heart of the CW-150 is a 3D microwave resonator that delivers ultra-precise weight readings with an accuracy of ±1 mg (3 Sigma). This non-contact electromagnetic measurement is fast, repeatable, and proven through multiple industrial test campaigns and repeatability studies to stay within tight error boundaries, ensuring the highest level of product quality.

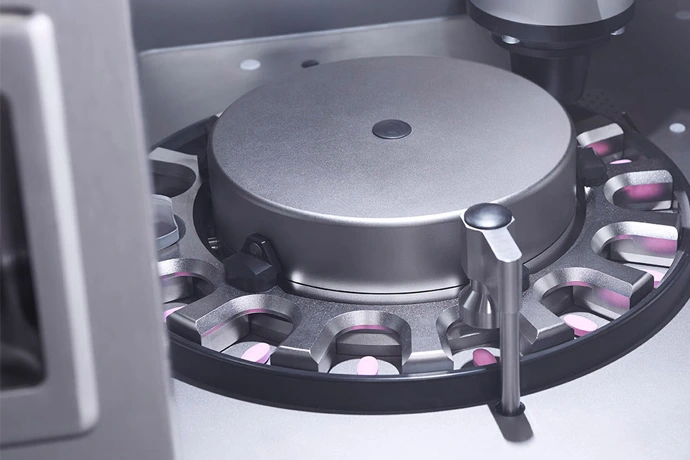

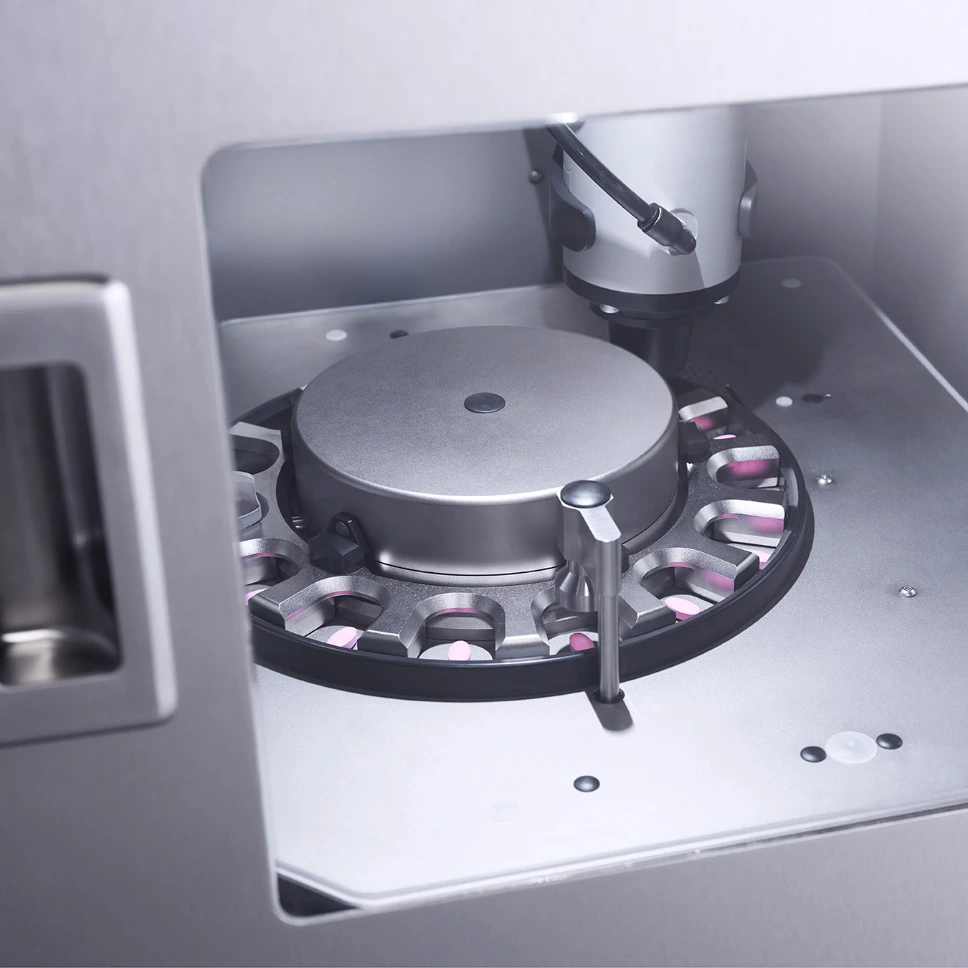

The CW-150 features a built-in calibration protocol based on a multiple linear regression method. Products are directed to a highly accurate weigh cell, housed in a sealed chamber, for calibration reference. Optionally, this chamber can also host a 4-parameter tester to measure physical attributes like weight, hardness, thickness, and diameter, providing additional offline quality control based on conventional sampling techniques.
User-friendly data
management & integration

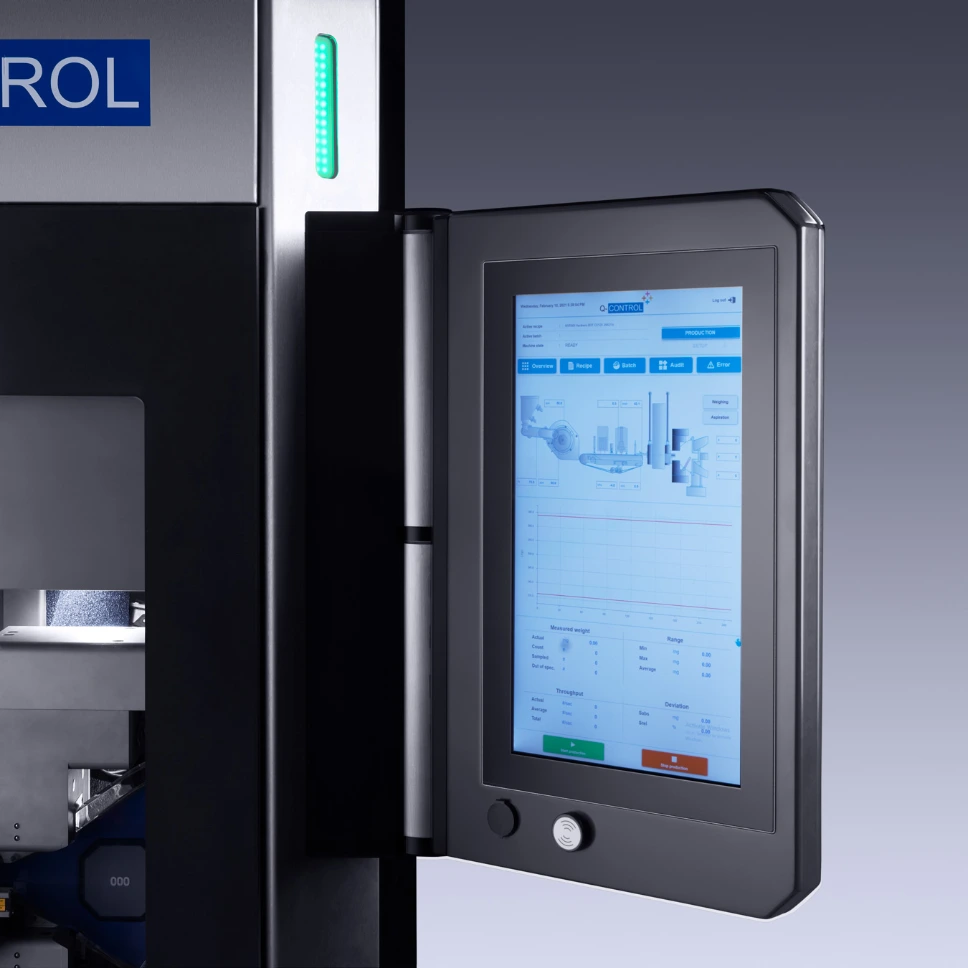

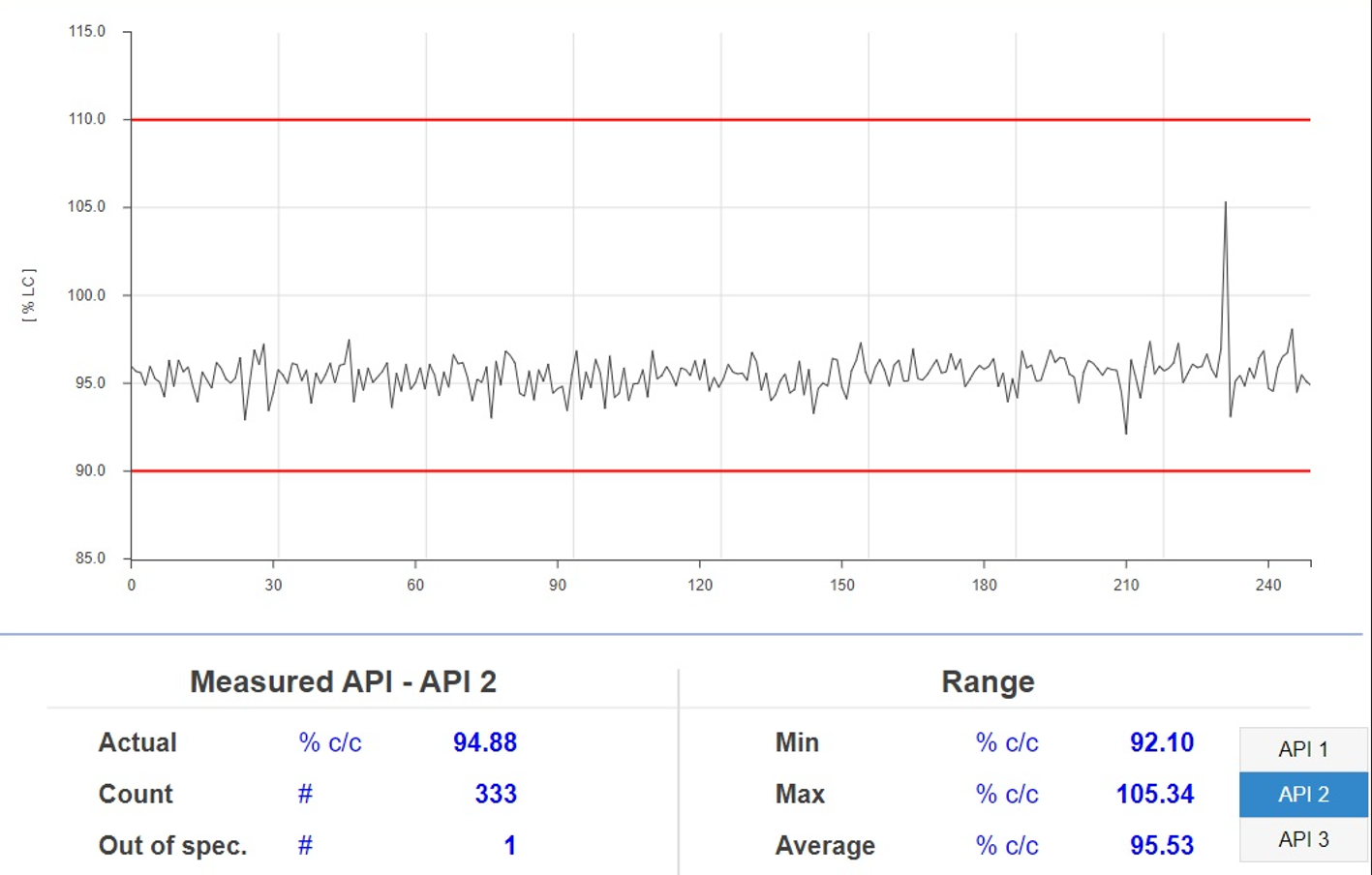

All data are captured and processed by high-speed processors and stored in a CFR21 Part 11-compliant software with a clear, step-by-step interface. The system supports USB exports and OPC UA communication, allowing seamless integration into upstream or downstream equipment such as MES or PAT systems.
Engineered for
practical use and compliance

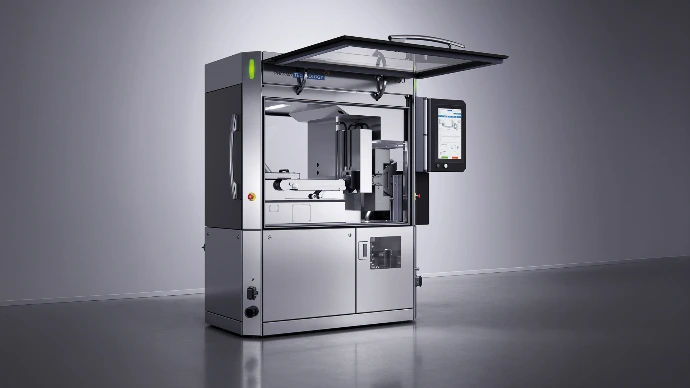

Designed with a strong focus on ease of use, the CW-150 allows fast and affordable format changes for various tablet and capsule sizes. It meets CE guidelines, and comes complete with all documentation, including a user manual, safety instructions, and wiring diagrams. Its simplified mechanical design makes it ideal for everyday use in production environments.
Alternative Products
These other products might interest you
Specifications
| Capacity | |
|---|---|
| Maximum inspection speed | 150.000 objects/h |
| Minimum product width | 4 mm |
| Maximum product width | 24 mm |
| Maximum product height | 9 mm |
| Minimum Product Size | Caps 5 |
| Maximum Product Size | Caps 000 |
| 3D mass measurement accuracy | +/- 1mg (3 Sigma) |
| Utilities | |
|---|---|
| Air extraction | Integrated Hepa filter H13 |
| Requested Compressed Air | Min 500 L/min - Min. 6 bar |
| Power Supply | 380 V 3ph + N + PE |
| Frequency | 50 Hz / 60 Hz |
| Environment | |
|---|---|
| Noise Level | <70 dB (A) |
| Containment Level | Dust Tight |
| Material | |
|---|---|
| Non-Metallic Contact Parts | FDA approved |
| Application | |
|---|---|
| Product type | Tablet, Capsule |
| Function | Quality control |
| Application Area | Manufacturing |
| Weight Measurement | |
|---|---|
| Weighing range | 200mg to 2000mg |
