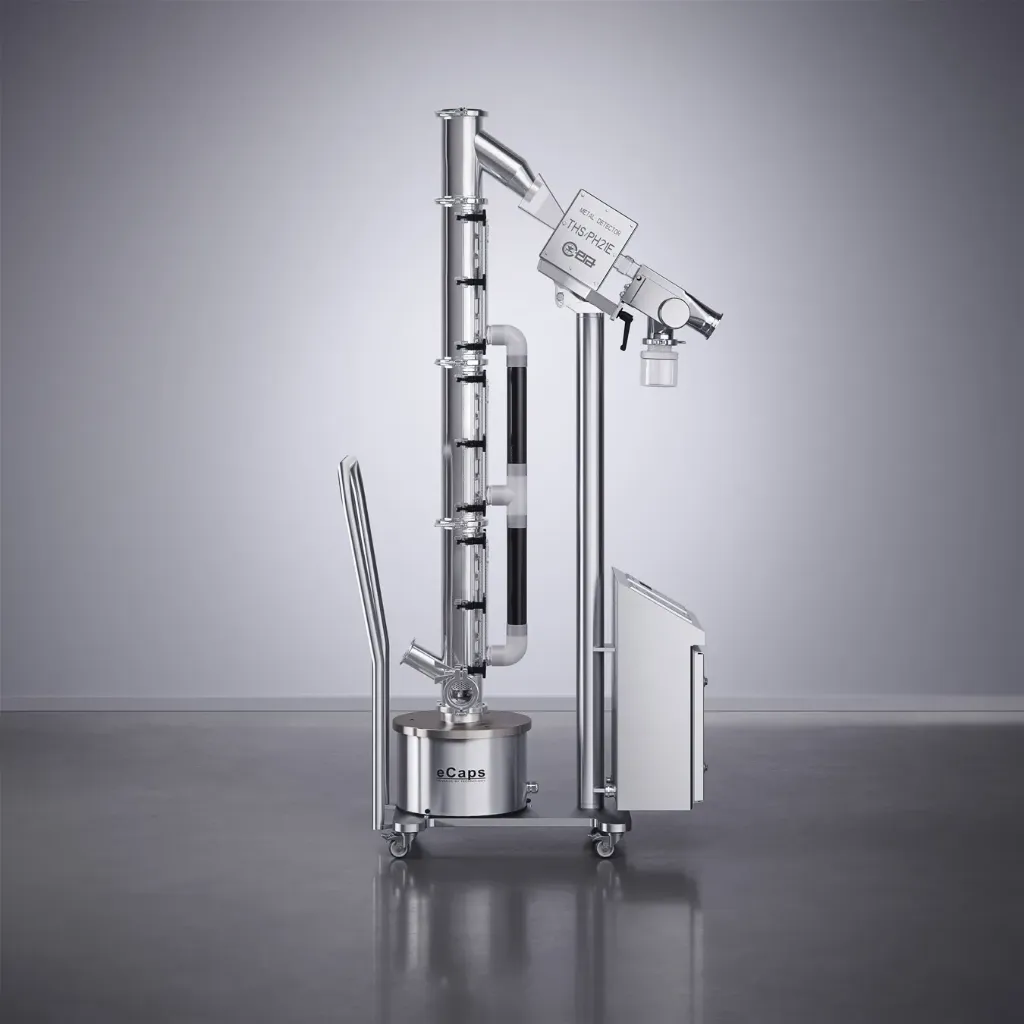

Modular elevation and polishing

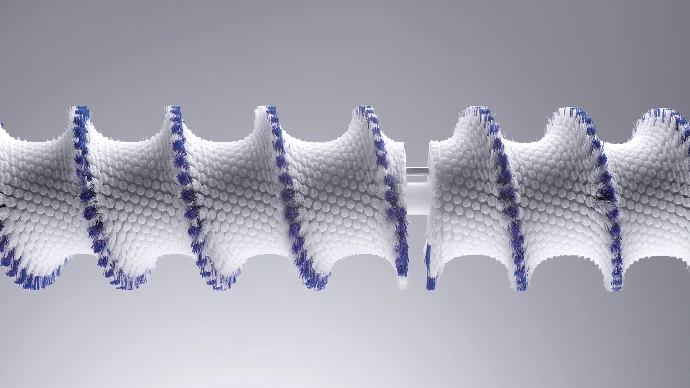

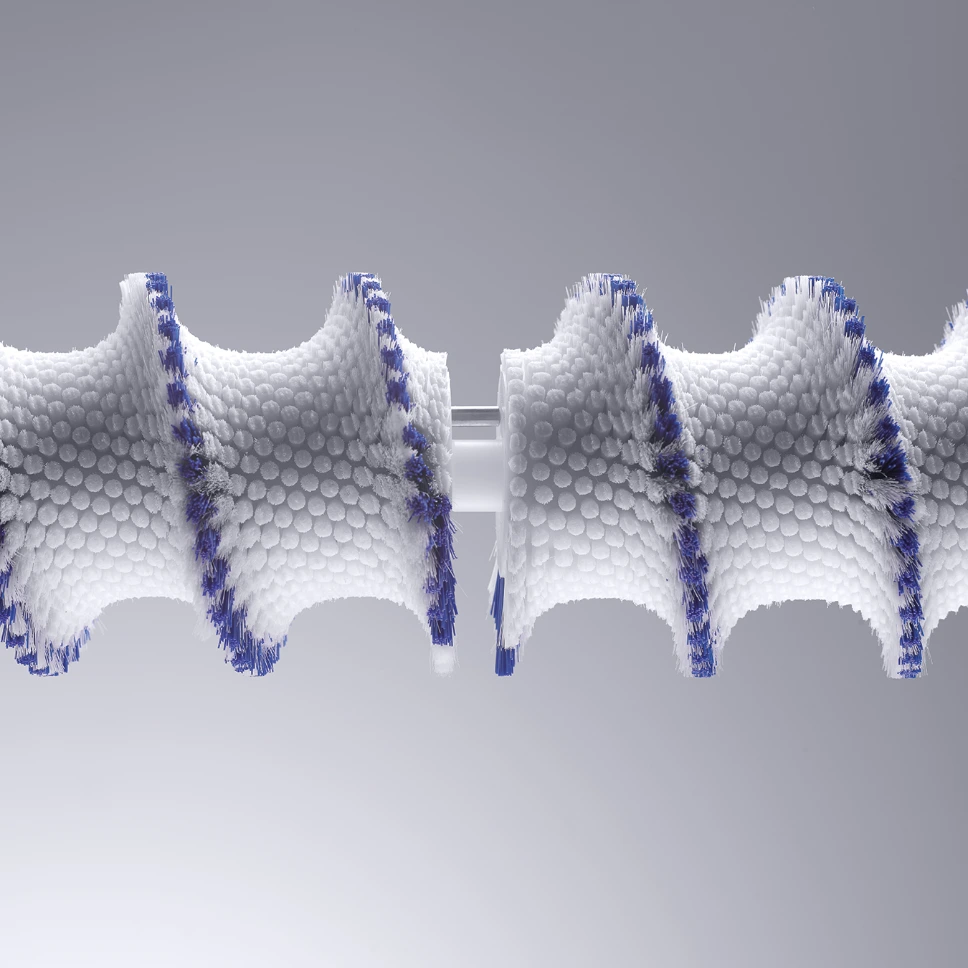

The eCaps uses 400 mm modular segments, each equipped with a patented rotating module that elevates, dedusts, and polishes capsules from size 000 to 5. Three conveying heights—1000, 1400, and 1800 mm—allow easy adaptation to different layouts, with full interchangeability between polishing segments.

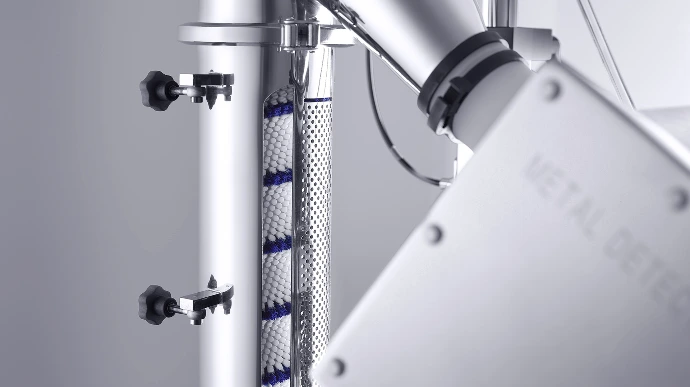

High-efficiency vacuum flow
A homogeneous vacuum flow delivers high-level polishing performance, while a uniquely engineered aspiration window ensures complete emptying for every capsule shape. The simplified, tool-free construction reduces the number of parts, making assembly, dismantling, and cleaning quick and efficient.

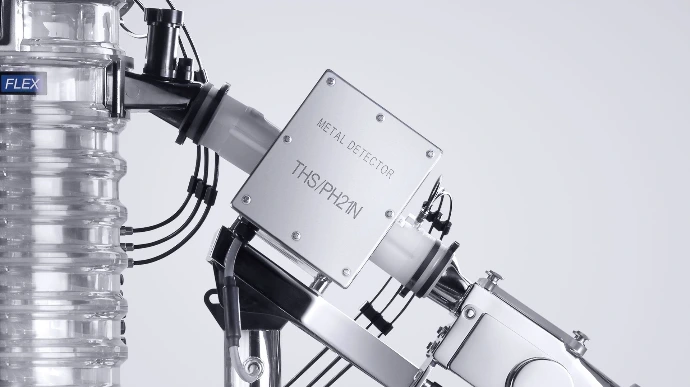

Integrated metal detection
The compact frame minimizes footprint and retention zones while accommodating metal detectors from Ceia, Lock, or Safeline. The system offers high detection accuracy combined with a fast reject mechanism.
Available Accessories
Check out all optional equipment !
Alternative Products
These other products might interest you
Specifications
| Physical properties | |
|---|---|
| Elevation height | 1000, 1400, 1800 |
| Packaging | Wooden Box |
| Netto weight | 170 kg |
| Floor Dimensions | 480 mm x 760 mm |
| Inlet Height | 514 mm |
| Metal Detection | |
|---|---|
| Available Metal Detector | Lock Insight, Ceia THS/PH21 EE |
| Outlet Chute | TC ASME BPE 2,5", TC ISO 1127 DN50 |
| Head Opening | 100 mm x 40 mm (CE), 98 mm x 35 mm (LI) |
| Accuracy Stainless Steel | 0,50 mm |
| Accuracy Ferro | 0,30 mm |
| Accuracy Non-Ferro | 0,35 mm |
| Capacity | |
|---|---|
| Minimum Product Size | Caps 5 |
| Maximum Product Size | Caps 000 |
| Utilities | |
|---|---|
| Conveying Adjustment | Brush Rotation Speed |
| Self Emptying | Yes |
| Requested Air Extraction | Adjustable 110 - 150 m3/h - pressure drop 150 - 2000 Pa |
| Dust Extraction Connection | TC ISO 1127 DN50 |
| Requested Compressed Air | N/A or 350 l/min - Min. 4,5 bar |
| Compressed Air connection | Ø 8 mm |
| Power Supply | 110 V to 230 V ± 10 % |
| Frequency | 50 Hz / 60 Hz |
| Environment | |
|---|---|
| Noise Level | <68 dB (A) |
| Operating Temperature | 15 - 25 °C |
| Maximum Relative Humidity | 60% |
| Containment Level | Open design |
| Material | |
|---|---|
| Inlet Chute | TC ISO 1127 DN50 |
| Non-Metallic Contact Parts | POM C - Nylon - Silicone |
| Metal Contact Parts | Stainless Steel 316L |
| Contact Parts Finishing | Ra ≤ 0,8 µm |
| Frame Parts | Stainless Steel 304 |
| Frame Finishing | Brushed 320 |
| Frame mounted on wheels | Yes |
| IQ-OQ Protocol | Available |
| Material Certificates | Available |
| Application | |
|---|---|
| Function | Polishing, Metal detection |
| Product type | Capsule |
| Application Area | Manufacturing |
