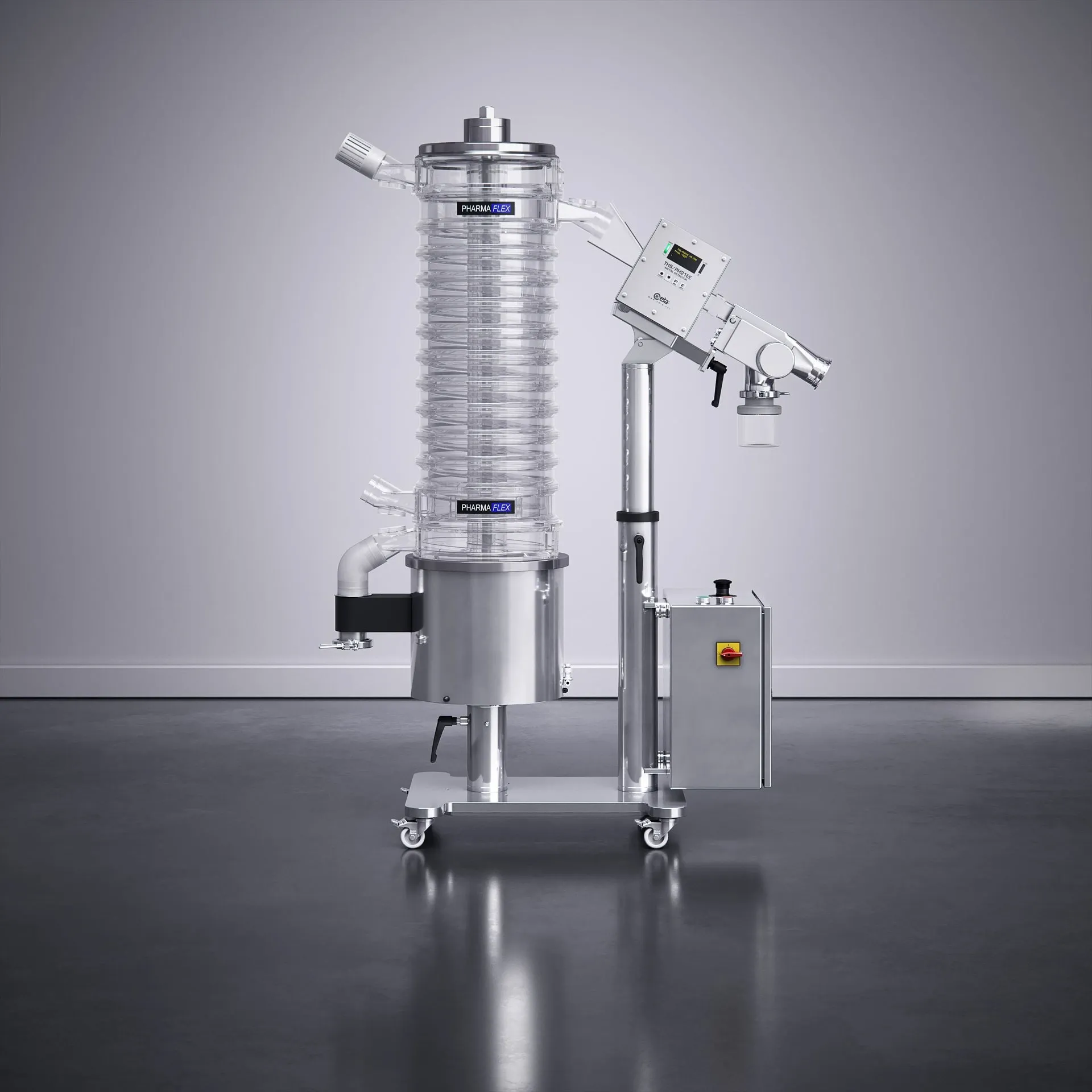

eFlex - Tablet deduster with polymer segments


This eFlex is our entry point in the range of deduster with metal check. The system does not have any containment features.


Key benefits

  • Ergonomic
  • Efficient
  • Robust
  • Reliable
  • Elevation height: 250 - 500 mm
  • Available with CEIA and Lock
0.00 € 0.00 €

  • Inlet Chute
  • Available Metal Detector
  • Outlet Chute
  • Minimum Product Size
  • Maximum Product Size
  • Conveying Adjustment
  • Self Emptying
  • Requested Air Extraction
  • Dust Extraction Connection
  • Requested Compressed Air
  • Compressed Air connection
  • Noise Level
  • Power Supply
  • Frequency
  • Non-Metallic Contact Parts
  • Metal Contact Parts
  • Contact Parts Finishing
  • Operating Temperature
  • Maximum Relative Humidity
  • Frame Parts
  • Frame Finishing
  • Frame mounted on wheels
  • IQ-OQ Protocol
  • Material Certificates
  • Packaging
  • Netto weight
  • Floor Dimensions
  • Inlet Height
  • Containment Level
  • Elevation height
  • Head Opening
  • Accuracy Stainless Steel
  • Accuracy Ferro
  • Accuracy Non-Ferro
  • Product type
  • Function
  • Application Area
Add to cart
Contact Us
Documents
eFlex - Brochure.pdf

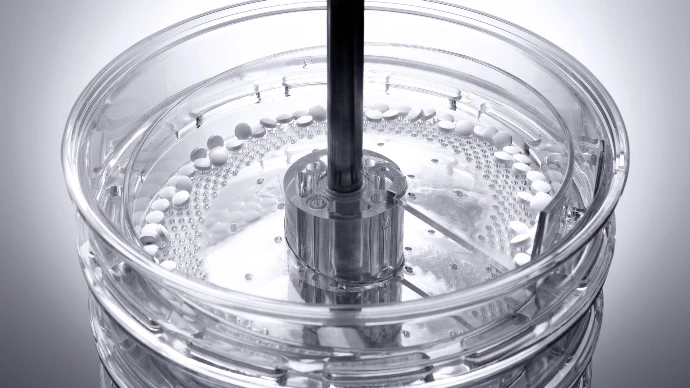

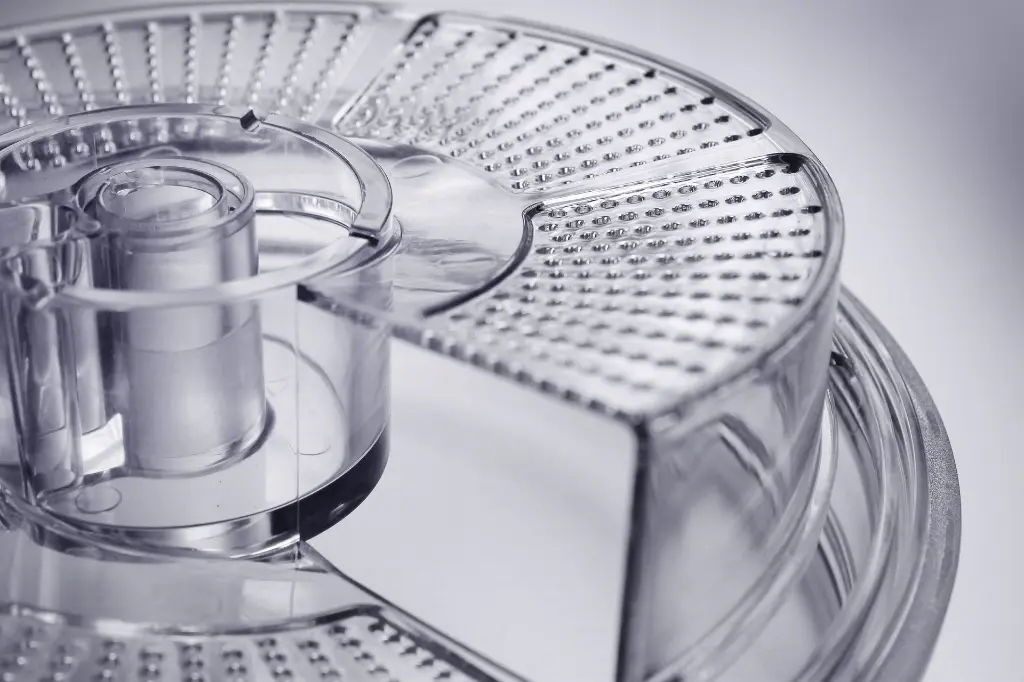

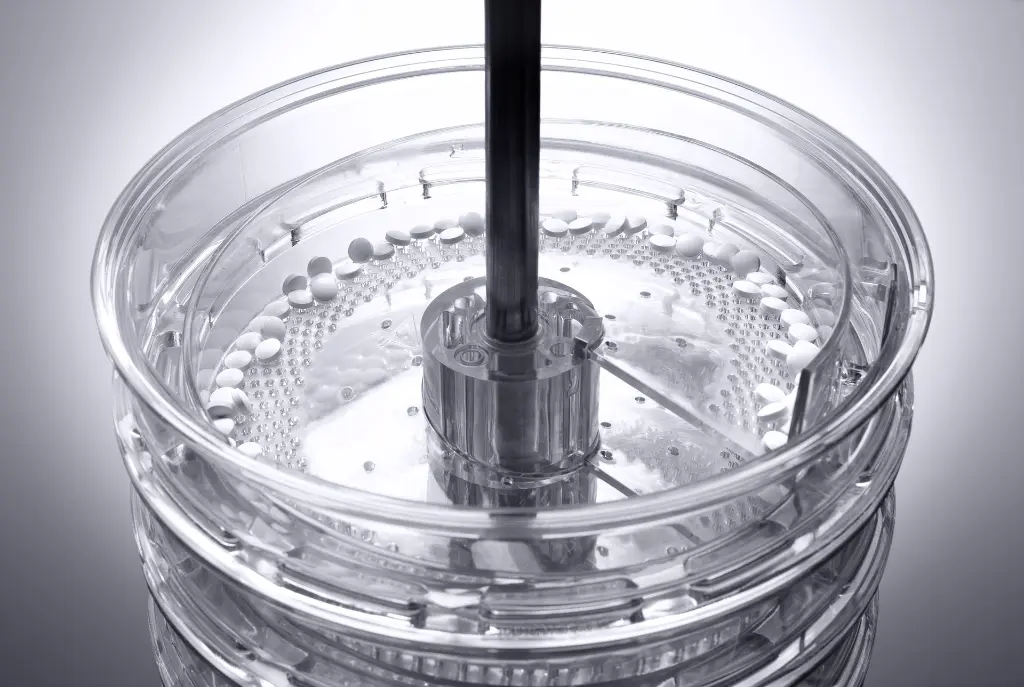

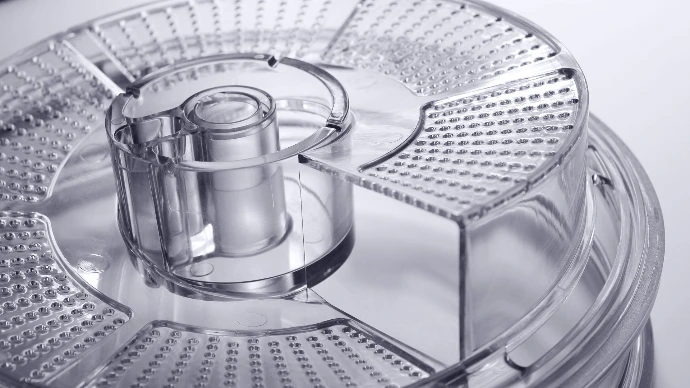

Modular, easy-to-clean design


The eFlex range features a new generation of segmented, modular spirals molded in Tritan copolyester. Each spiral segment can be removed individually, allowing fast dismantling, cleaning, and validation. The robust, fully transparent design offers a full 360° view of the tablets throughout the process.

High-efficiency dedusting



Enlarged circumferential dust extraction channels combined with central air jets immediately remove excess powder during dedusting. Tablets are conveyed to the outlet within seconds, ensuring excellent dedusting efficiency. The simplified, tool-free design reduces the number of parts and streamlines maintenance.

Available Accessories

Check out all optional equipment !

Your Dynamic Snippet will be displayed here... This message is displayed because you did not provide enough options to retrieve its content.

Specifications

Physical properties
Elevation height 250, 500
Packaging Wooden Box
Netto weight 160 kg
Floor Dimensions 480 mm x 755 mm
Inlet Height 735 mm
Metal Detection
Available Metal Detector Lock Insight, Ceia THS/PH21 EE
Outlet Chute TC ASME BPE 2,5", TC ISO 1127 DN50
Head Opening 100 mm x 40 mm (CE), 98 mm x 35 mm (LI)
Accuracy Stainless Steel 0,50 mm
Accuracy Ferro 0,30 mm
Accuracy Non-Ferro 0,35 mm
Capacity
Minimum Product Size Ø 4 mm
Maximum Product Size Ø 25 mm
Utilities
Conveying Adjustment Vibration Intensity
Self Emptying Yes
Requested Air Extraction Adjustable 150 - 200 m3/h - pressure drop 150 - 500 Pa
Dust Extraction Connection TC ISO 1127 DN50
Requested Compressed Air 40 - 80 l/min - Min. 4,5 bar
Compressed Air connection Ø 6 mm
Power Supply 110 V to 230 V ± 10 %
Frequency 50 Hz / 60 Hz
Environment
Noise Level <68 dB (A)
Operating Temperature 15 - 25 °C
Maximum Relative Humidity 60%
Containment Level Open design
Material
Inlet Chute Flex Connect © (Ø56,3 mm)
Non-Metallic Contact Parts Tritan MX 711 - POM C - Silicone
Metal Contact Parts Stainless Steel 316L
Contact Parts Finishing Ra ≤ 0,8 µm
Frame Parts Stainless Steel 304
Frame Finishing Brushed 320
Frame mounted on wheels Yes
IQ-OQ Protocol Available
Material Certificates Available
Application
Function Dedusting, Metal detection
Product type Tablet
Application Area Manufacturing
