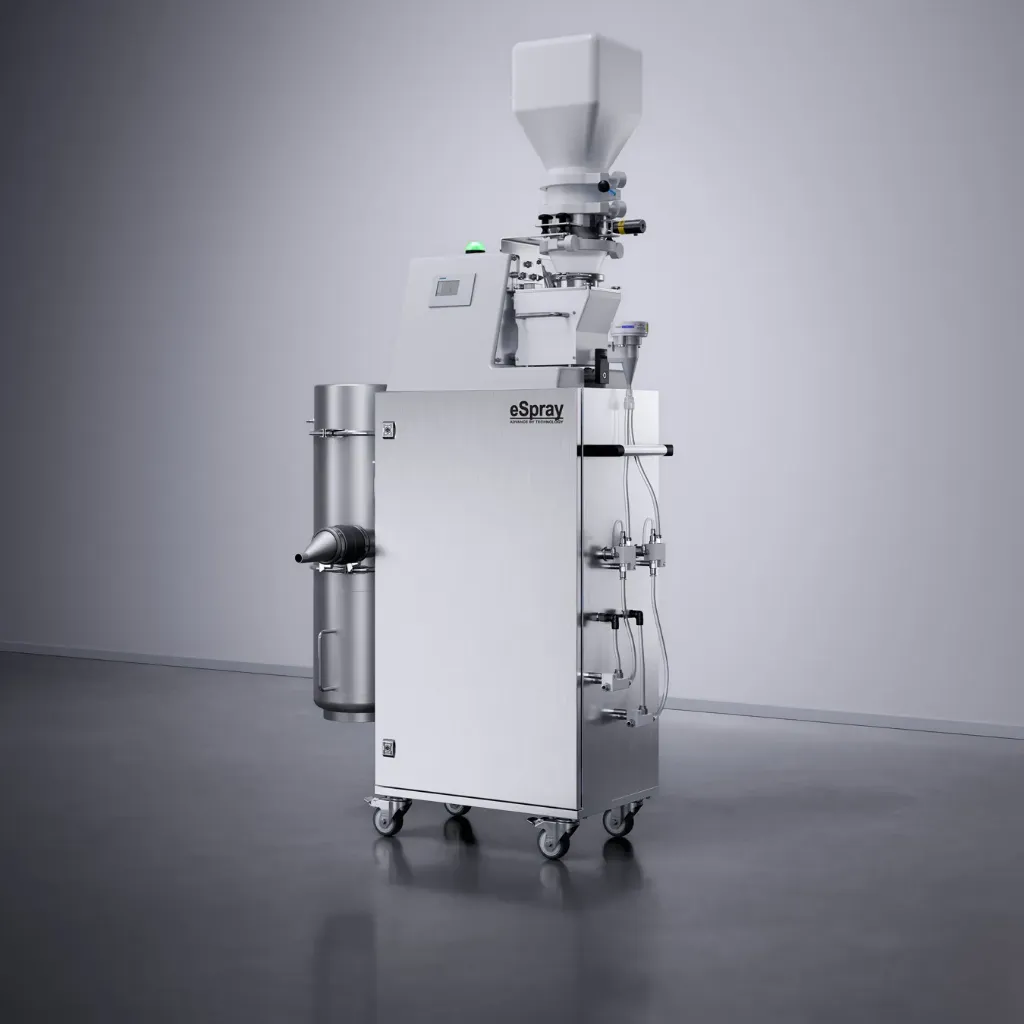

eSpray - External lubrication

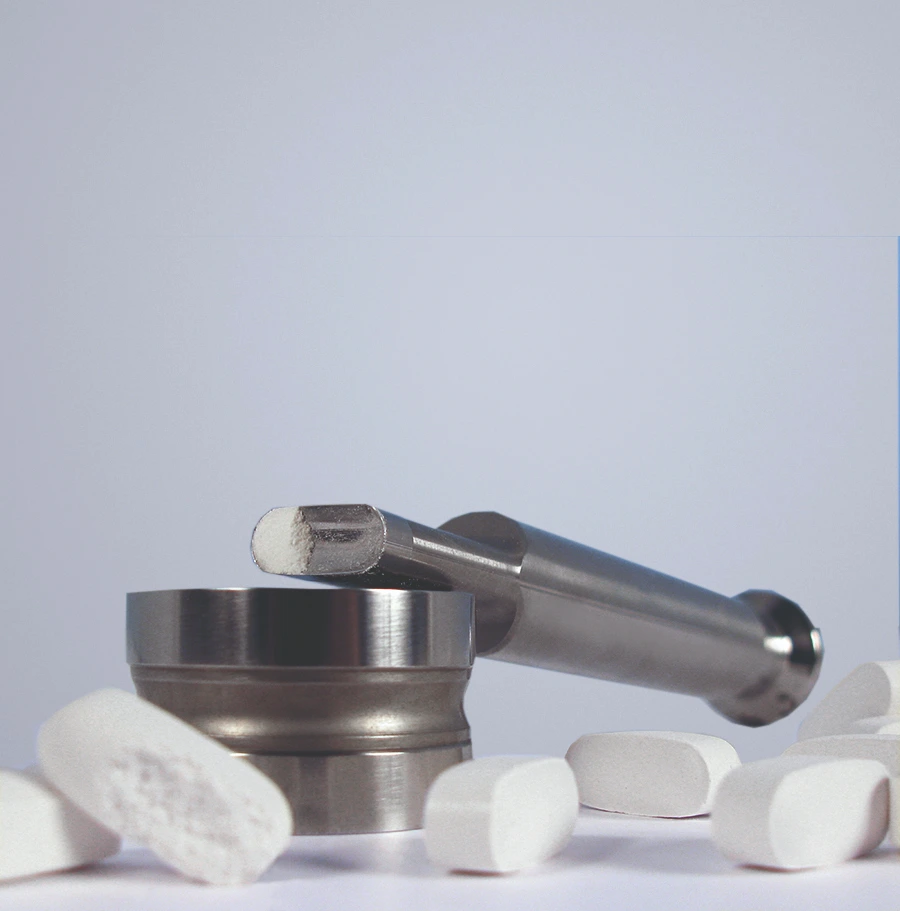

The eSpray is an ergonomic punch face and die wall lubrication system that continuously sprays dry lubricant onto tablet press tooling, delivering a consistent and verifiable amount of lubricant onto the product’s outer surface. It is an easy and efficient solution to cope with issues such as capping, sticking, too high ejection force & chemical incompatibility.



Key benefits:

  • Accurate spray rate
  • Consistent amount of lubricant sprayed
  • Prevent lubricant recirculation
  • Retrofittable to all existing presses
  • Fast & easy dismantling and cleaning
0.00 € 0.00 €

  • Product type
  • Function
  • Maximum Product Size
  • Conveying Adjustment
  • Requested Compressed Air
  • Compressed Air connection
  • Noise Level
  • Power Supply
  • Frequency
  • Non-Metallic Contact Parts
  • Metal Contact Parts
  • Contact Parts Finishing
  • Operating Temperature
  • Maximum Relative Humidity
  • Frame Parts
  • Frame Finishing
  • Frame mounted on wheels
  • IQ-OQ Protocol
  • Material Certificates
  • Packaging
  • Netto weight
  • Floor Dimensions
  • Containment Level
  • Dispensing System
  • Spraying range
  • Application Area
Add to cart
Contact Us
Documents
eSpray - Brochure.pdf

Efficient and precise
 lubrication application

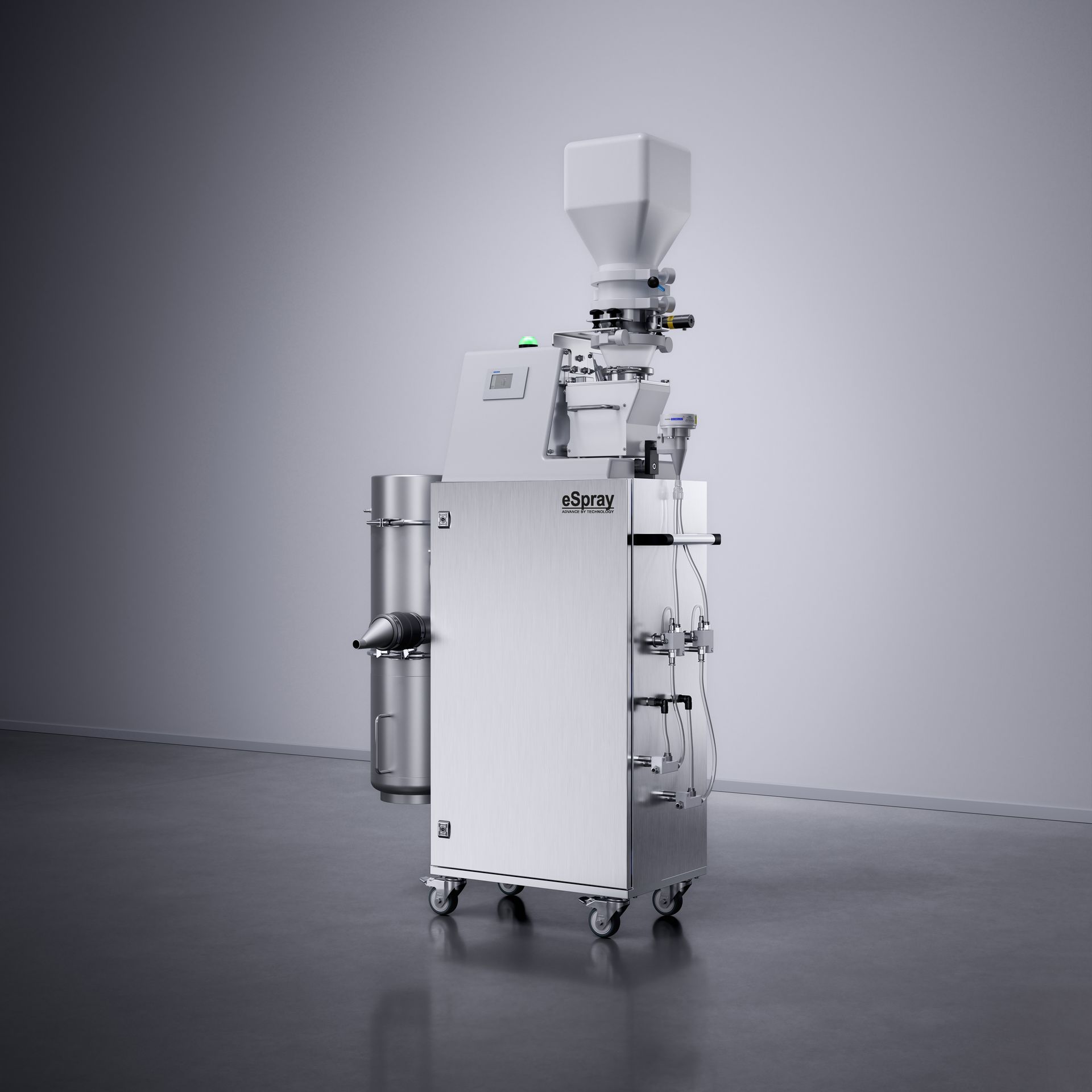

The eSpray is an ergonomic lubrication system designed to apply dry lubricant directly onto the punch face and die wall of your tablet press. It ensures a consistent and verifiable application across the product’s surface, supporting high-quality tablet production.

Effervescent tablets

Features that set us apart

Solve compression challenges

This compact system provides an effective solution for common issues like capping, sticking, high ejection force, and chemical incompatibility. It also improves tablet dissolution, making it ideal for both existing and sensitive formulations.

Validated micro-dosing

The sprayed lubricant quantity is precisely controlled and measurable, staying below the threshold that would require it to be listed as an ingredient. This ensures compliance with regulatory requirements while supporting high-performance tablet design.

Cleaner production

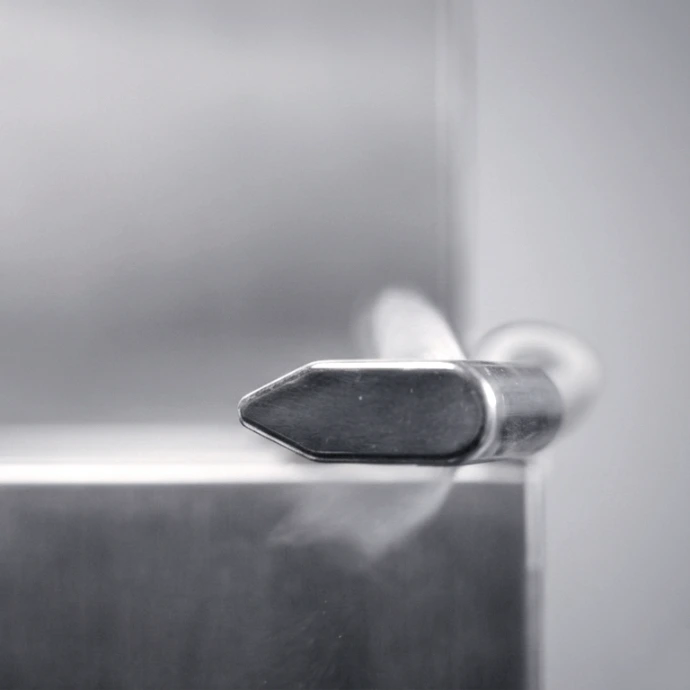

By spraying only the required amount of lubricant and vacuuming the excess directly from the nozzle, eSpray keeps your production environment clean. It helps reduce or eliminate the need for dry lubricant in the powder blend, streamlining the process.

Specifications

Physical properties
Packaging Wooden Box
Netto weight 180 kg
Floor Dimensions 400 mm x 870 mm
Capacity
Maximum Product Size Ø 28 mm
Utilities

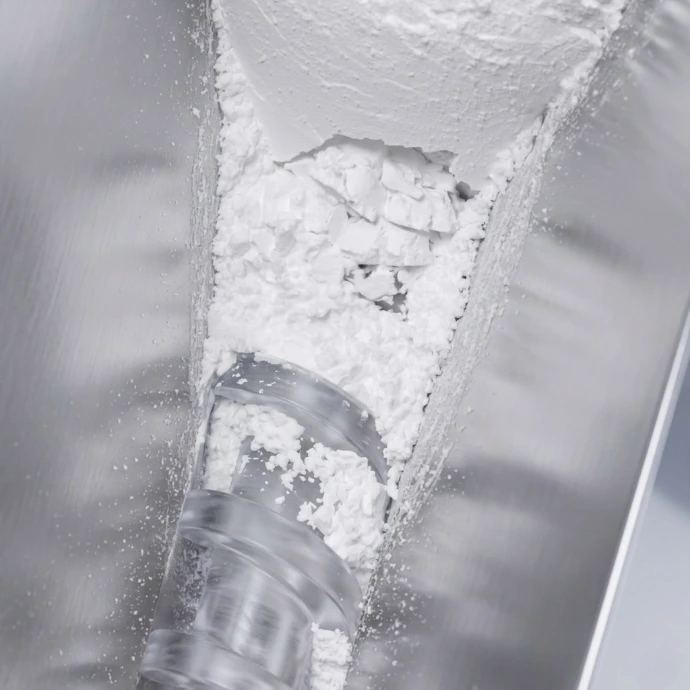

Conveying Adjustment Dosing Screw Rotation Speed
Requested Compressed Air 450 - 600 l/min - Min. 6 bar
Compressed Air connection KS4
Power Supply 100 to 240 VAC ± 10 %
Frequency 50 Hz / 60 Hz
Environment
Noise Level <80 dB (A)
Operating Temperature 15 - 25 °C
Maximum Relative Humidity 30%
Containment Level Open design
Material
Non-Metallic Contact Parts POM C, PU, Silicone
Metal Contact Parts Stainless Steel 316L
Contact Parts Finishing Ra ≤ 0,8 µm
Frame Parts Stainless Steel 304
Frame Finishing Brushed 320
Frame mounted on wheels Yes
IQ-OQ Protocol Available
Material Certificates Available
Application
Product type Tablet
Function Lubrication
Application Area Manufacturing
Lubrication
Dispensing System For closed container refill
Spraying range 1,5 - 15 g/min
