Modular conveying
for any process layout

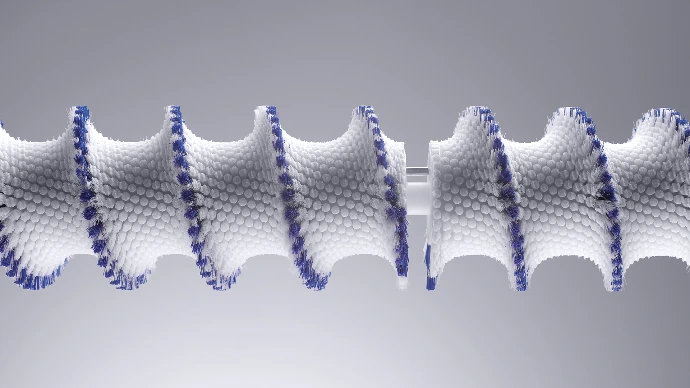

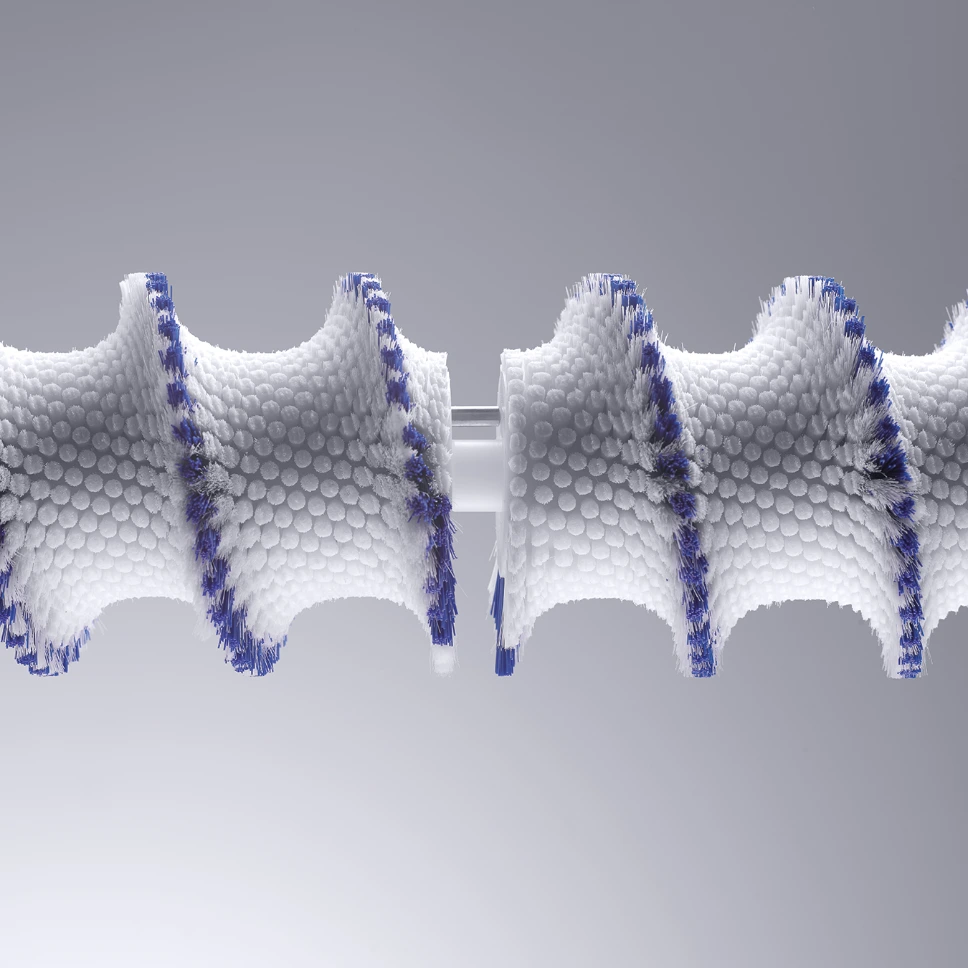

The system is available in four conveying heights—1000, 1400, 1800, and 2200 mm—each equipped with a rotating module that elevates, dedusts, and polishes capsules from size 00 to 5. This modularity ensures smooth integration into a wide range of production setups.
Patented technology
for superior polishing

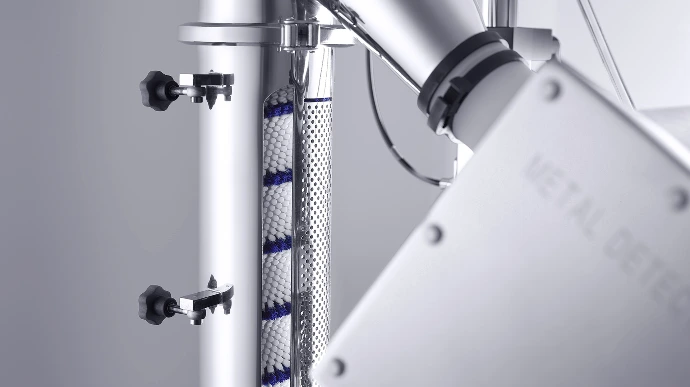

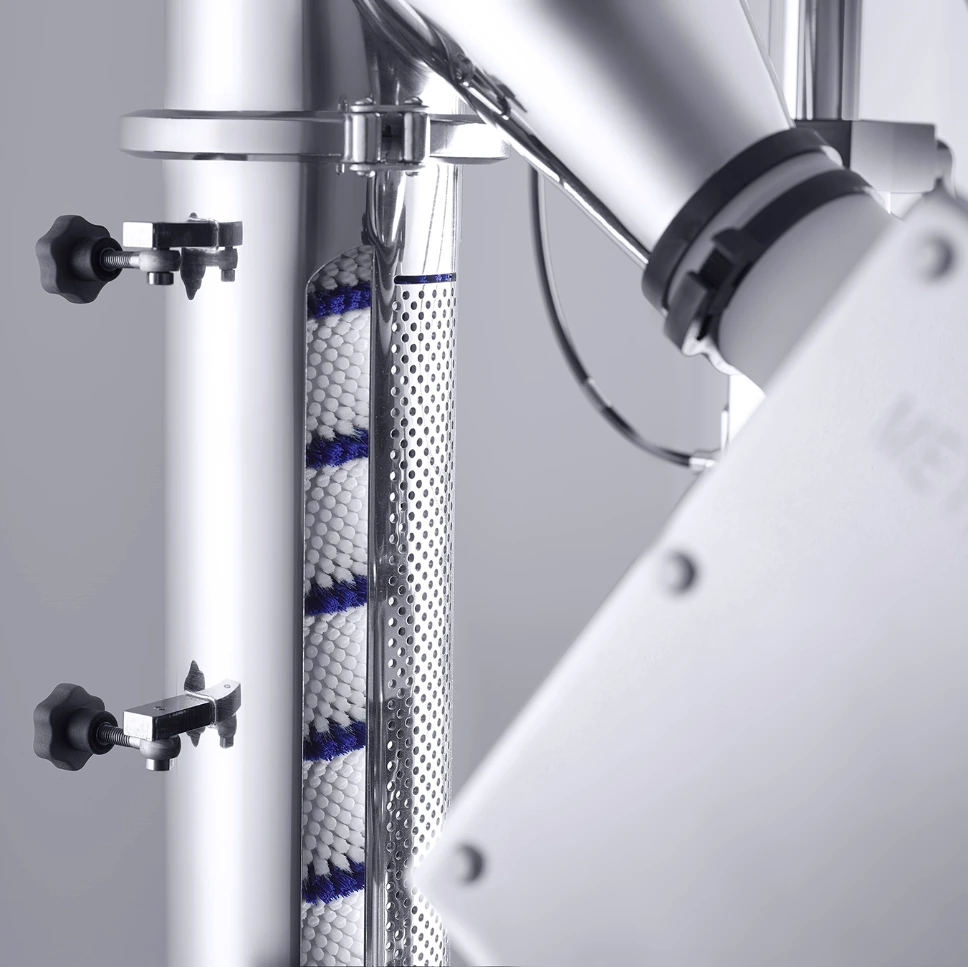

A uniform vacuum flow delivers high polishing efficiency, while a unique aspiration window design guarantees complete emptying for all capsule types. The streamlined construction minimizes parts, eliminates the need for tools, and makes assembly and cleaning fast and straightforward.
Dust-tight and scalable containment options

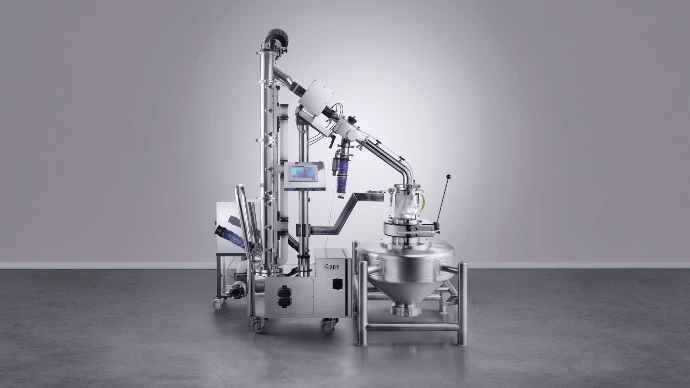

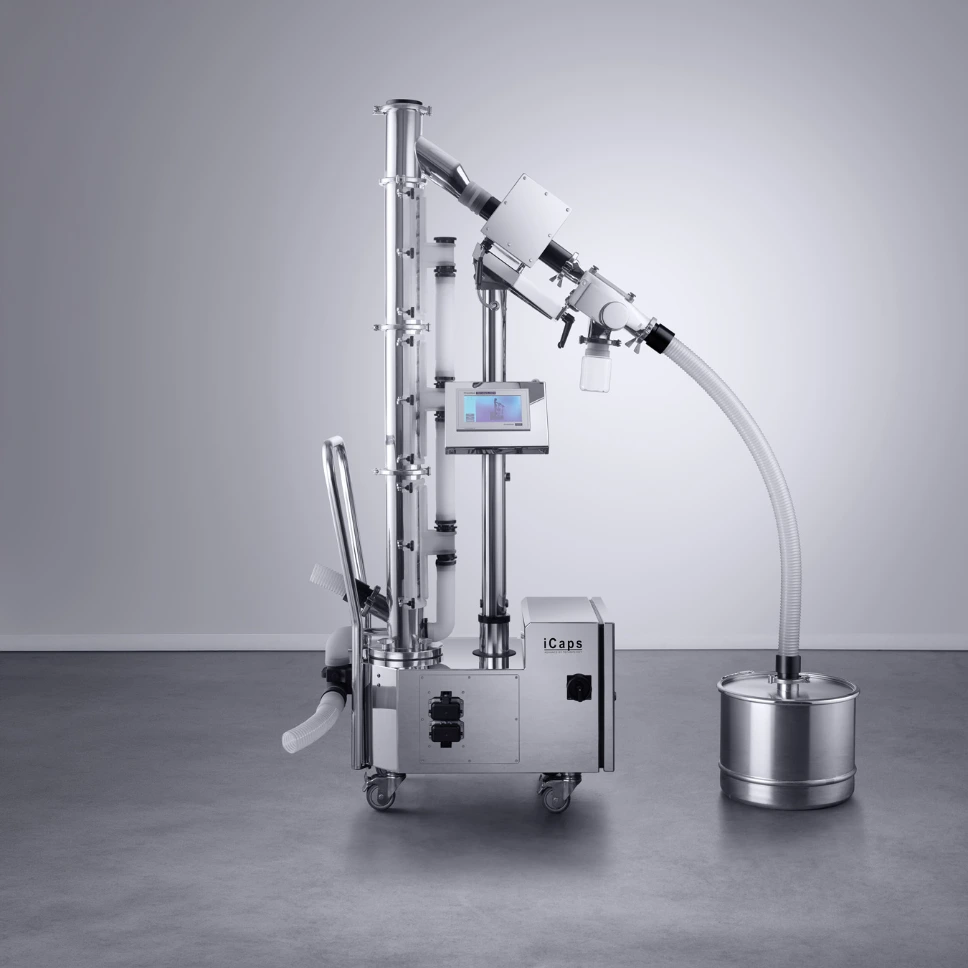

Compatible with Ceia or Lock metal detectors, the DT (Dust Tight) configuration reduces operator exposure to dust and product. The system can also be upgraded to “C” Containment or “HC” High-Containment washable versions to match evolving process requirements.
Available Accessories
Check out all optional equipment !
Alternative Products
These other products might interest you
Specifications
| Physical properties | |
|---|---|
| Elevation height | 1000, 1400, 1800, 2200 |
| Packaging | Wooden Box |
| Netto weight | 180 kg |
| Floor Dimensions | 470 mm x 710 mm |
| Inlet Height | 558 mm |
| Metal Detection | |
|---|---|
| Available Metal Detector | Ceia THS/PH21 N, Lock Insight |
| Outlet Chute | TC ASME BPE 2,5", TC ISO 1127 DN50 |
| Accuracy Stainless Steel | 0,40 mm (CE), 0,50 mm (LI) |
| Accuracy Ferro | 0,25 mm (CE), 0,30 mm (LI) |
| Accuracy Non-Ferro | 0,30 mm (CE), 0,35 mm (LI) |
| Head Opening | Ø 68 mm |
| Capacity | |
|---|---|
| Minimum Product Size | Caps 5 |
| Maximum Product Size | Caps 000 |
| Utilities | |
|---|---|
| Conveying Adjustment | Brush Rotation Speed |
| Self Emptying | Yes |
| Requested Air Extraction | Adjustable 110 - 150 m3/h - pressure drop 150 - 2000 Pa |
| Dust Extraction Connection | TC ISO 1127 DN50 |
| Requested Compressed Air | N/A or 350 l/min - Min. 4,5 bar |
| Compressed Air connection | KS4 |
| Power Supply | 110 V to 230 V ± 10 % |
| Frequency | 50 Hz / 60 Hz |
| Environment | |
|---|---|
| Containment Level | Dust Tight, Contained, High contained |
| Noise Level | <68 dB (A) |
| Operating Temperature | 15 - 25 °C |
| Maximum Relative Humidity | 60% |
| Material | |
|---|---|
| Inlet Chute | TC ISO 1127 DN50 |
| Non-Metallic Contact Parts | POM C - Nylon - Silicone |
| Metal Contact Parts | Stainless Steel 316L |
| Contact Parts Finishing | Ra ≤ 0,8 µm |
| Frame Parts | Stainless Steel 304 |
| Frame Finishing | Mirror Polished |
| Frame mounted on wheels | Yes |
| IQ-OQ Protocol | Available |
| Material Certificates | Available |
| Application | |
|---|---|
| Function | Polishing, Metal detection |
| Product type | Capsule |
| Application Area | Manufacturing |
