Optimized sorting
for reliable packaging

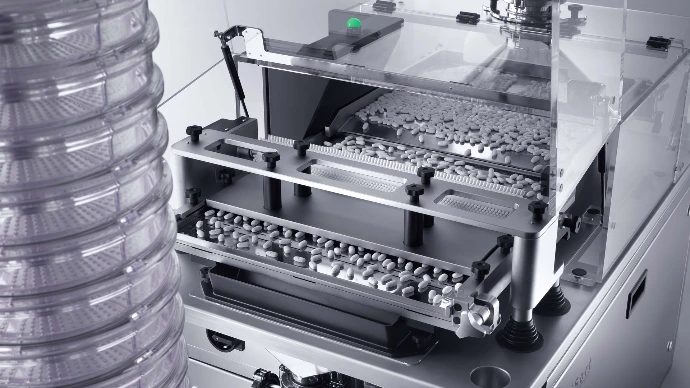

Installed upstream of the blister machine, the system automatically removes undersized tablets and fragments before they enter the feeding system. This prevents jams and reduces downtime, keeping the packaging line running smoothly and consistently.
Fully enclosed,
flexible integration
A dedicated lifting system feeds tablets to the blister hopper at the required height, all within a dust-tight, closed design that maintains a clean production environment. The sorter can also be paired with a tablet deduster for a complete, connected handling process, and can be integrated directly into the packaging line when space is limited.
Fast changeover
and easy operation

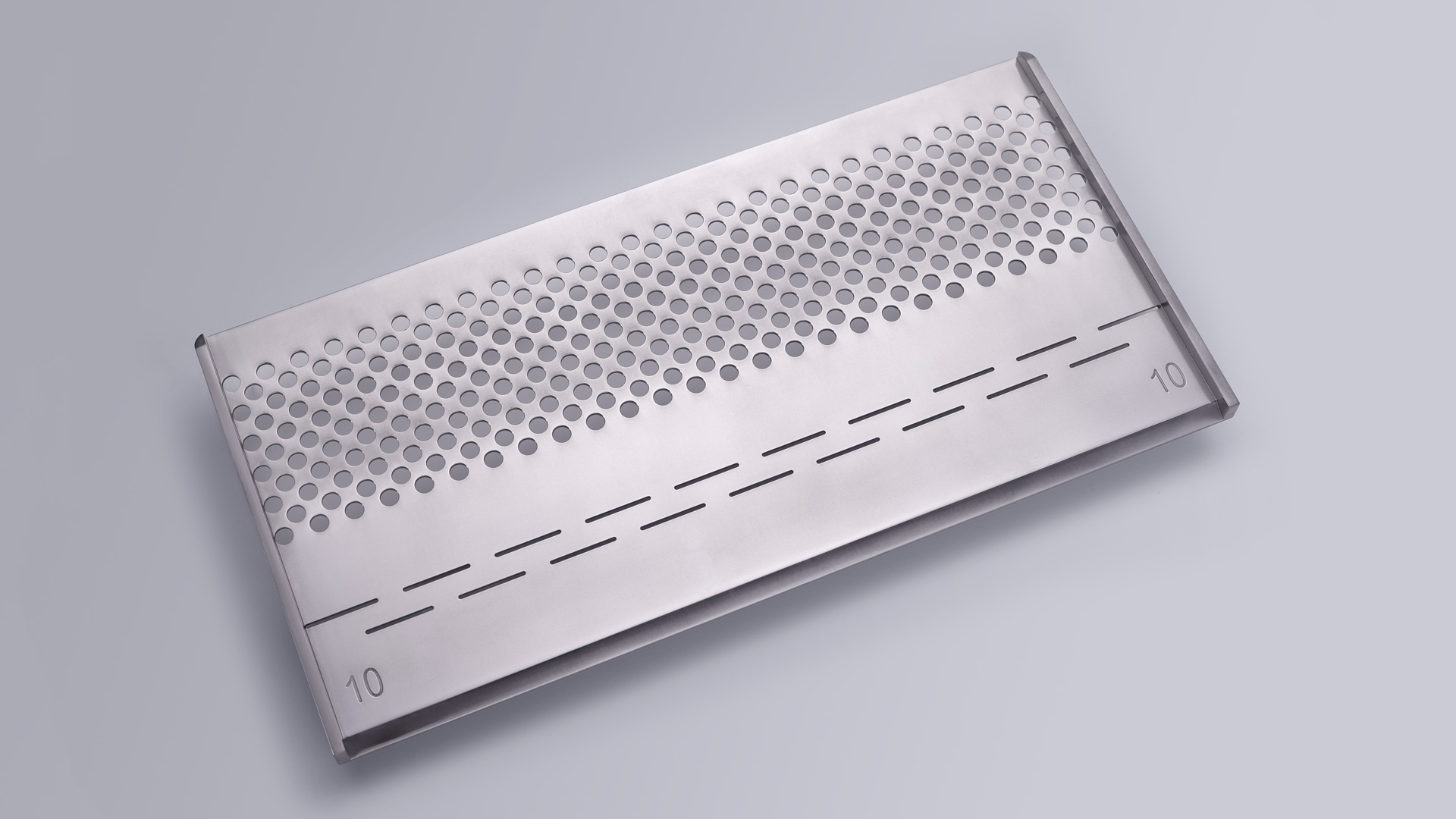

Product settings are stored in a user-friendly interface to ensure repeatability and quick, automated changeovers. Only one format part is needed to adapt to any tablet size or shape, and the tool-free design simplifies assembly, cleaning, and maintenance. When combined with a deduster and Flex Connect, the system is also available in containment configurations up to OEB4.
Alternative Products
These other products might interest you
Specifications
| Physical properties | |
|---|---|
| Packaging | Wooden Box |
| Netto weight | 500 kg |
| Floor Dimensions | 760 mm x 1165 mm |
| Inlet Height | 1125 mm |
| Capacity | |
|---|---|
| Minimum Product Size | Ø 4 mm |
| Maximum Product Size | Ø 25 mm |
| Tablet Ø8 x 2 mm [tabs/h] | 700.000 |
| Tablet Ø13 x 4 mm [tabs/h] | 500.000 |
| Oblong 19 x 8 x 9 mm[tabs/h] | 350.000 |
| Utilities | |
|---|---|
| Conveying Adjustment | Vibration Intensity |
| Self Emptying | Yes |
| Power Supply | 110 V to 230 V ± 10 % |
| Frequency | 50 Hz / 60 Hz |
| Environment | |
|---|---|
| Containment Level | Dust Tight, Contained |
| Noise Level | <70 dB (A) |
| Operating Temperature | 15 - 25 °C |
| Maximum Relative Humidity | 60% |
| Material | |
|---|---|
| Non-Metallic Contact Parts | POM C, PU, Nylon, Silicone, PMMA |
| Metal Contact Parts | Stainless Steel 316L, Aluminum with Surface treatment, Stainless Steel 430 |
| Frame Parts | Stainless Steel 304, AL 6082 |
| Inlet Chute | 50 - 80 l - TC DIN DN100 |
| Contact Parts Finishing | Ra ≤ 0,8 µm |
| Frame Finishing | Brushed 320 |
| Frame mounted on wheels | Yes |
| IQ-OQ Protocol | Available |
| Material Certificates | Available |
| Application | |
|---|---|
| Product type | Tablet |
| Function | Sorting |
| Application Area | Packaging |
Frequently asked questions
Pharma Technology designs and manufactures advanced process equipment for solid dose pharmaceutical production, including tablet dedusters, capsule polishers, metal detection systems, in-process control solutions, and sorting equipment. All our machines are developed to support high efficiency, accuracy, and compliance with international quality standards.
Yes. Most of our solutions are modular and available in different heights, containment levels, and with several options. Our team can help you configure the right setup for your specific throughput, space, or regulatory requirements.
We provide full life-cycle support: installation and commissioning, on-site training, preventive maintenance, spare parts, and remote troubleshooting. Our global service network ensures that your equipment remains reliable and compliant throughout its operating life.
