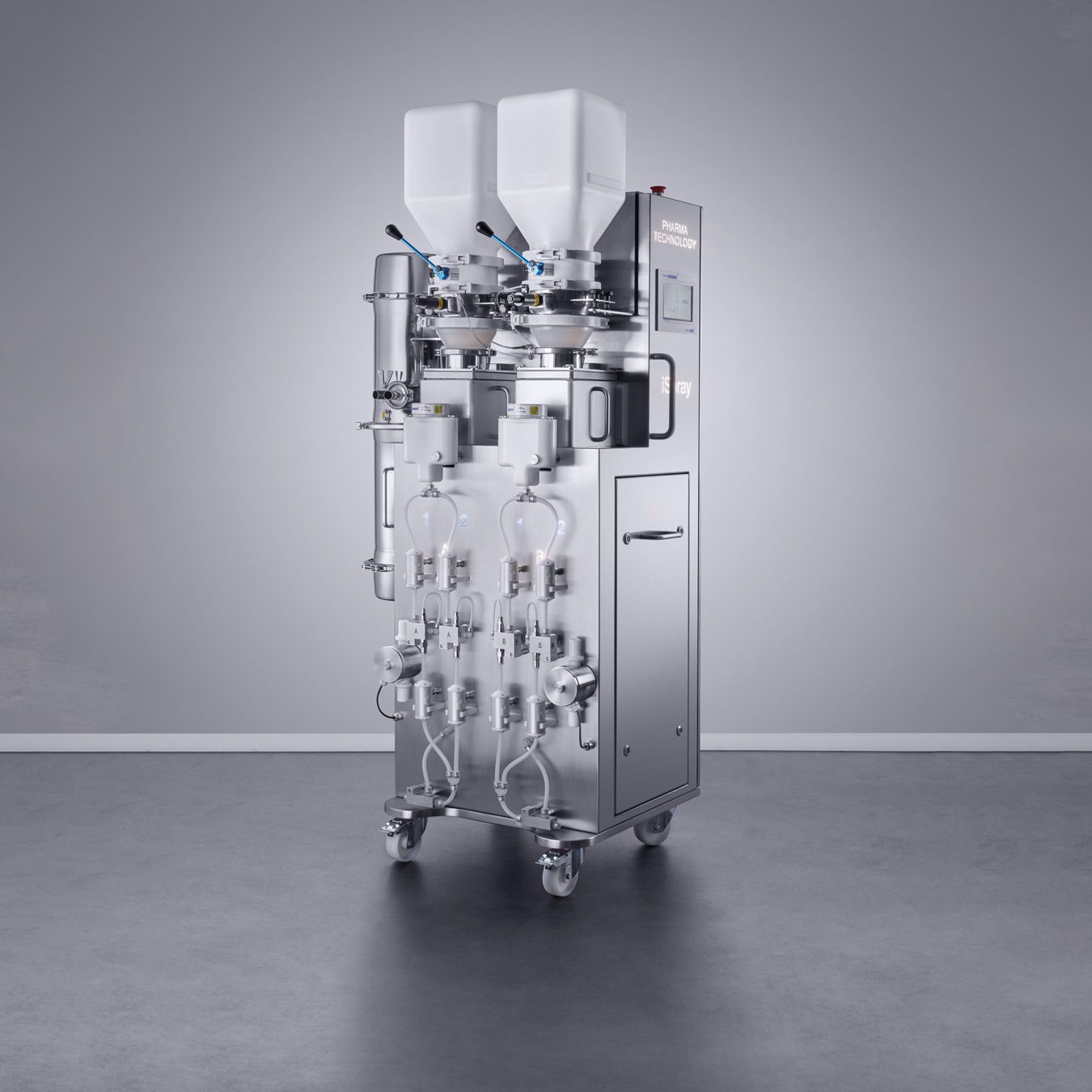

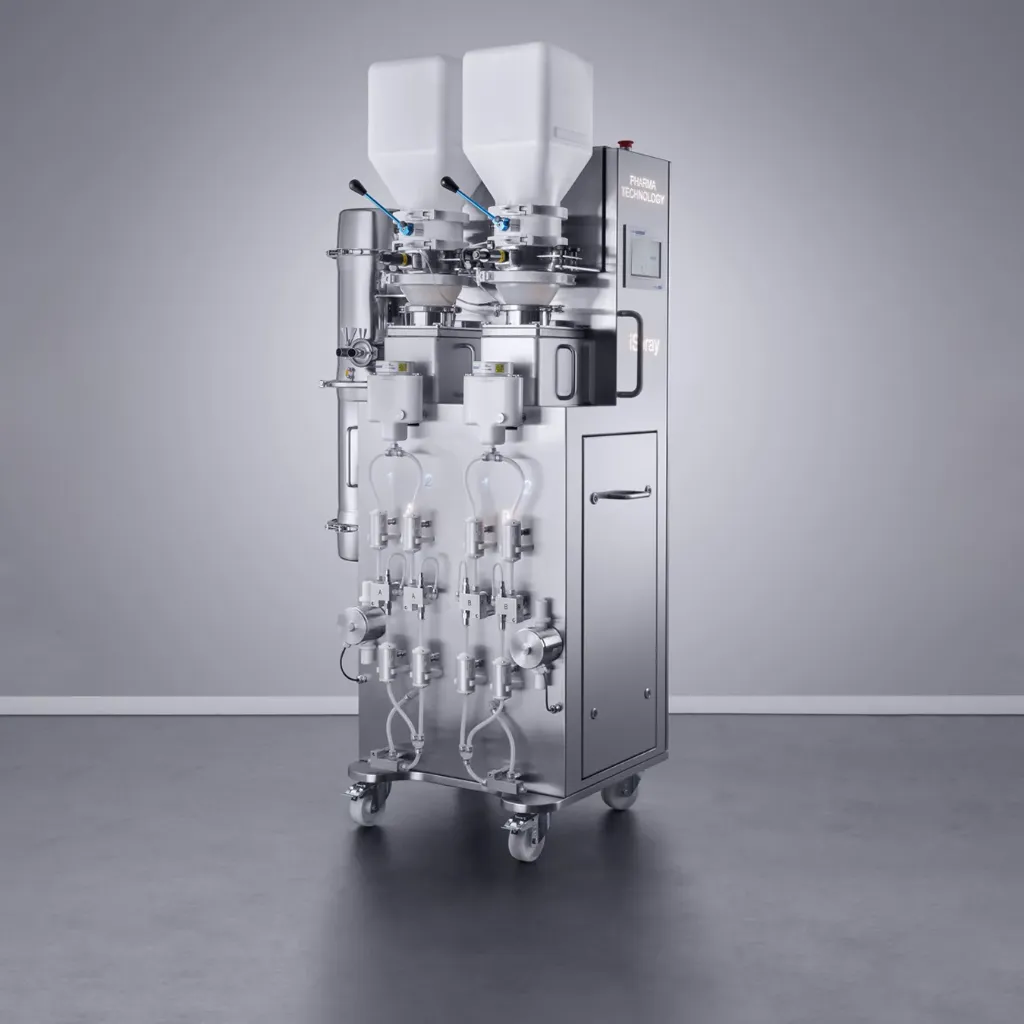

iSpray - External lubrication


The iSpray is a unique punch face and die wall lubrication system that continuously sprays dry lubricant onto tablet press delivering a consistent and verifiable amount of dry lubricant onto the tablet outer surface.


Key benefits

  • Very Accurate dosing
  • Continuous control of lubricant thanks to the flow measuring device
  • No recirculation of lubricant thanks to the high under pressure vacuum system
  • Pressure monitoring to automatically switch the back-up line
  • Back-up line to continue running in case of pipe blockage
  • Easy to install in any kind of tablet presses with customizable spray nozzles
  • Easy dismantling - Fast and easy cleaning
  • Standard "DT" Dust Tight and available in "C" Containment
  • Central HMI with OPC UA, CFR 21 Part 11 compliant
0.00 € 0.00 €

  • Product type
  • Function
  • Maximum Product Size
  • Conveying Adjustment
  • Requested Compressed Air
  • Compressed Air connection
  • Noise Level
  • Power Supply
  • Frequency
  • Non-Metallic Contact Parts
  • Metal Contact Parts
  • Contact Parts Finishing
  • Operating Temperature
  • Maximum Relative Humidity
  • Frame Parts
  • Frame Finishing
  • Frame mounted on wheels
  • IQ-OQ Protocol
  • Material Certificates
  • Packaging
  • Netto weight
  • Floor Dimensions
  • Containment Level
  • Dispensing System
  • Vacuum valve
  • Spraying range
  • Application Area
Add to cart
Contact Us
Documents
iSpray - Brochure.pdf

Consistent and clean
lubrication application


iSpray ensures precision tablet lubrication by applying a controlled amount of lubricant directly onto the upper punch face, die wall, and lower punch face. Excess lubricant is immediately vacuumed at the nozzle, ensuring clean operation and minimal waste. The collected surplus is stored in a removable bin, simplifying maintenance.

Features that set us apart

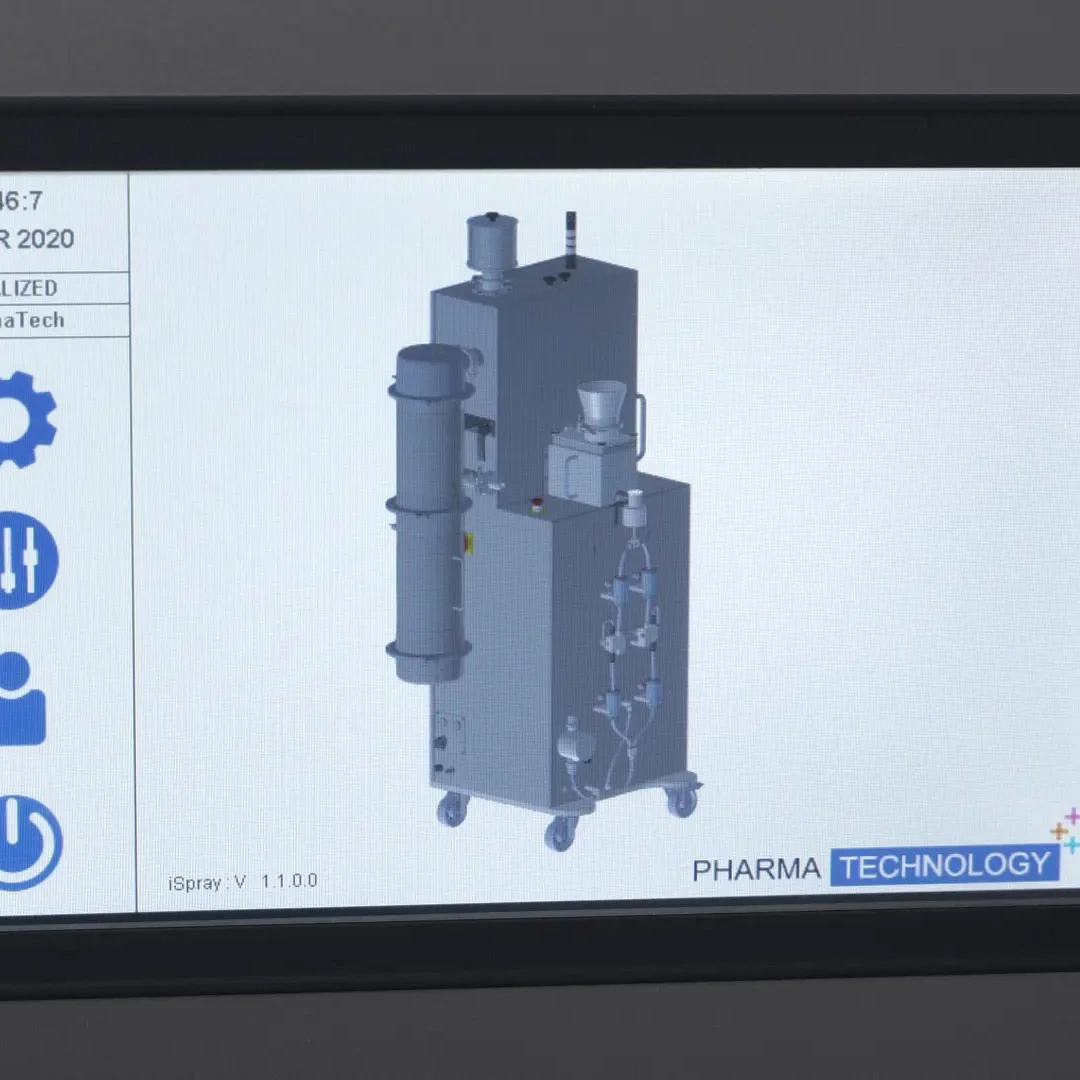

Advanced control and full compliance

iSpray features a touchscreen HMI with recipe storage and FDA-compliant audit trail recording, enabling secure and traceable production settings. The consistent spray quantity allows for process validation and uniform results from batch to batch, even over long production runs.

Performance boost for existing formulations

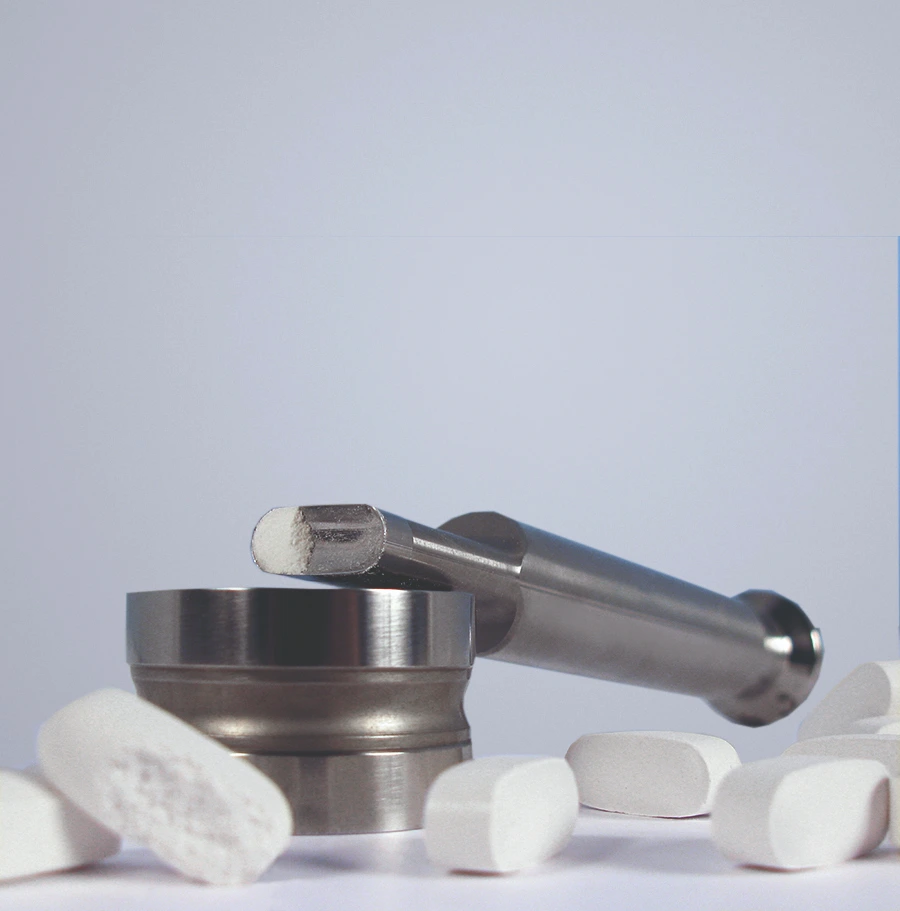

For hygroscopic or effervescent products, iSpray improves the ejection and take-off stages by reducing die wall and lower punch friction. It also helps prevent logo picking and sticking issues, significantly extending the lifespan of your tablet tooling and ejection cams.

Optimized for new formulations

iSpray removes the need for dry lubricants in new or sensitive formulations. It simplifies production and improves tablet solubility, which is essential for many modern biotech APIs. The sprayed amount is precisely controlled and validated to meet US Pharmacopeia requirements.

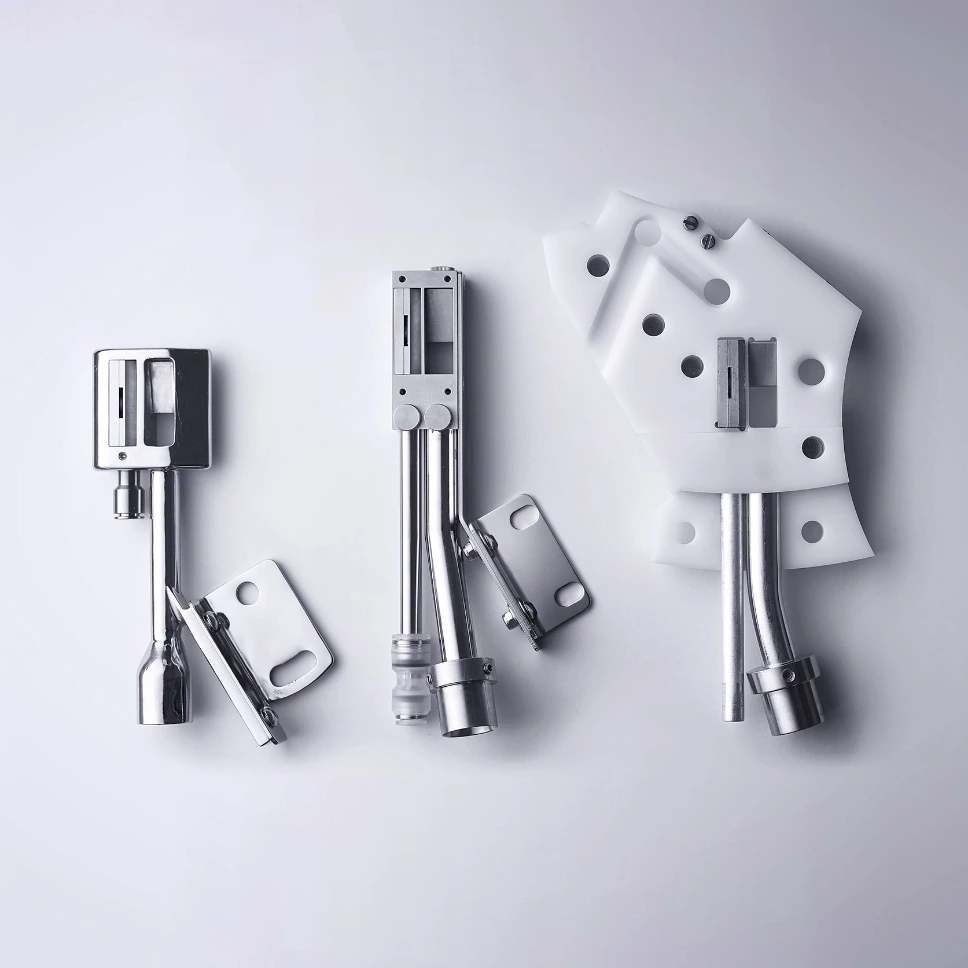

Smart dual-nozzle design with backup system

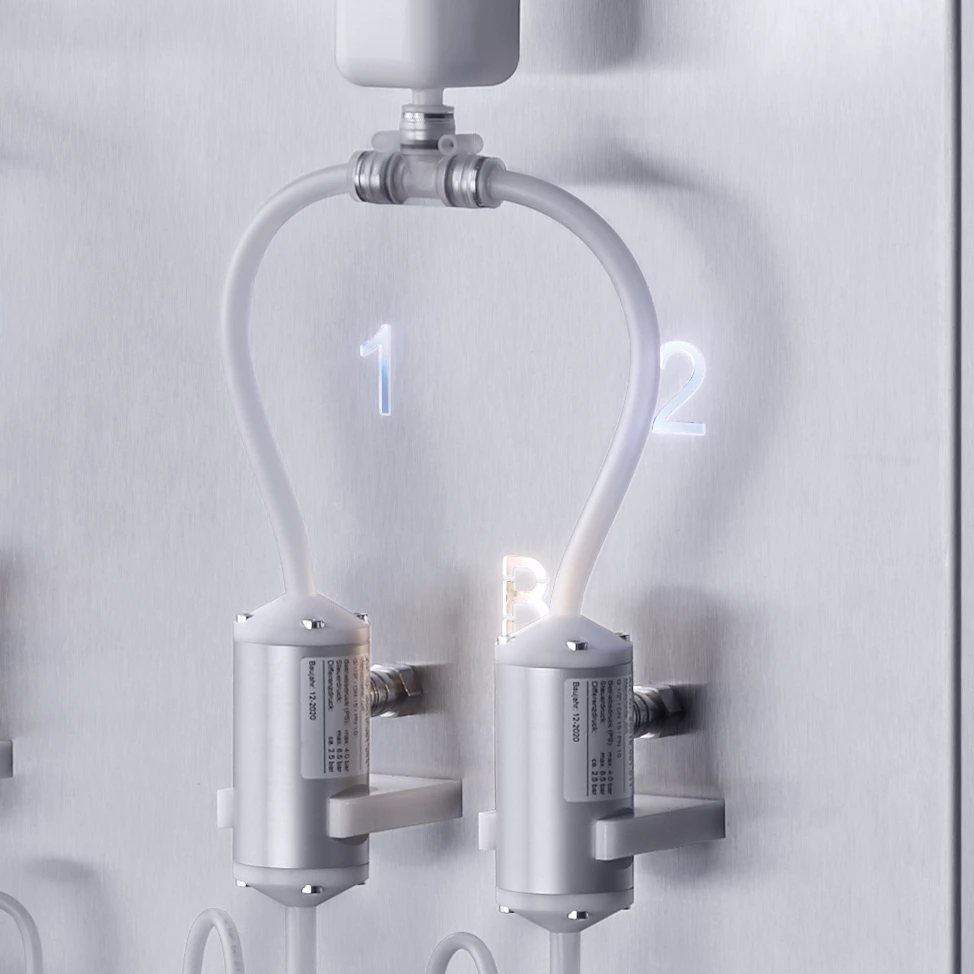

At the core of iSpray’s performance is its compact, double-sided spray nozzle, compatible with most rotary tablet presses. The innovative design ensures full coverage of various tool sizes. Each nozzle is also equipped with a pressure sensor and automatic backup line, which activates if a blockage is detected—preventing costly production interruptions.

Specifications

Physical properties
Packaging Wooden Box
Netto weight 220 kg
Floor Dimensions 620 mm x 925 mm
Capacity
Maximum Product Size Ø 28 mm
Utilities
Conveying Adjustment Dosing Screw Rotation Speed
Requested Compressed Air 450 - 600 l/min - Min. 6 bar
Compressed Air connection KS4
Power Supply 100 to 240 VAC ± 10 %
Frequency 50 Hz / 60 Hz
Environment
Noise Level <80 dB (A)
Operating Temperature 15 - 25 °C
Maximum Relative Humidity 30%
Containment Level Dust Tight
Material
Non-Metallic Contact Parts POM C, PU, Silicone
Metal Contact Parts Stainless Steel 316L
Contact Parts Finishing Ra ≤ 0,8 µm
Frame Parts Stainless Steel 304
Frame Finishing Brushed 320
Frame mounted on wheels Yes
IQ-OQ Protocol Available
Material Certificates Available
Application
Product type Tablet
Function Lubrication
Application Area Manufacturing
Lubrication
Dispensing System For closed container refill
Vacuum valve For emptying without production stop
Spraying range 1,5 - 15 g/min
