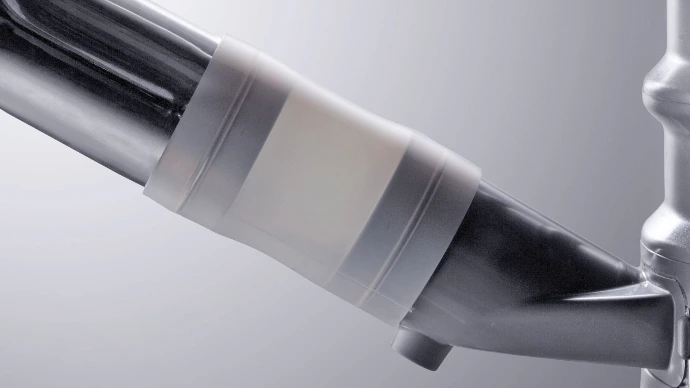

Flex Connect metal check system

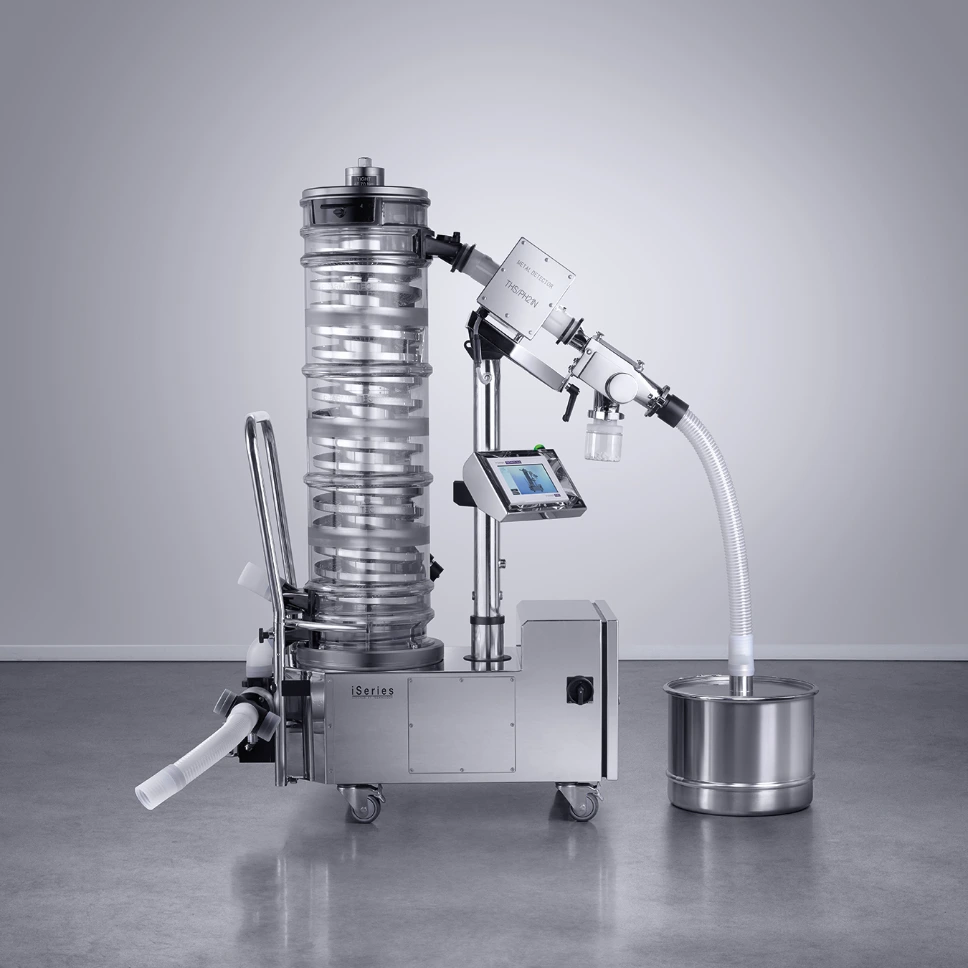

The patented Flex Connect system ensures a completely closed Dust Tight transfer from the deduster to the drum without using tri-clamp connections. Vibrating parts are isolated from steady components to maintain optimal detector accuracy, while test samples can be introduced without operator contact. Multiple detectors are available, including Lock, Ceia, and Safeline.
Containment and safety
The unit can be configured as a Dust Tight, “C” Containment, or High Containment (≤OEB5) solution. Pressure monitoring and failsafe valves protect operators, and smart system integration allows test samples to be inserted safely. Conveying heights range from 500 mm to 1250 mm, adapting to various process requirements.
Easy cleaning and maintenance

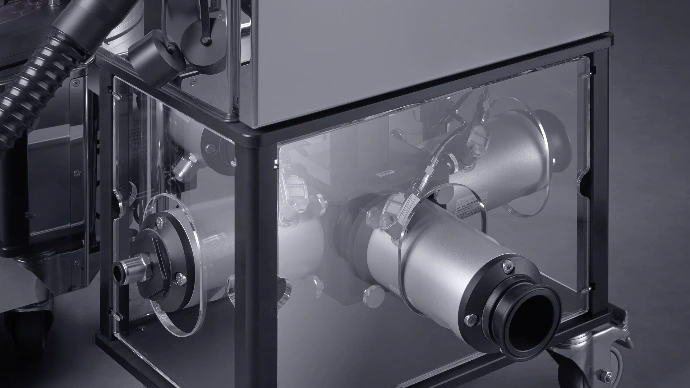

The design reduces parts, eliminates tooling, and integrates all wiring and piping within the frame, saving space and minimizing retention areas for faster, safer operation. The High Containment models include a Washing In Place system for efficient end-of-batch cleaning, removing volatile dust before dismantling.
Available Accessories
Check out all optional equipment !
Alternative Products
These other products might interest you
Specifications
| Physical properties | |
|---|---|
| Elevation height | 500, 750, 1000, 1250 |
| Packaging | Wooden Box |
| Netto weight | 270 kg |
| Floor Dimensions | 470 mm x 860 mm |
| Inlet Height | 579 mm |
| Metal Detection | |
|---|---|

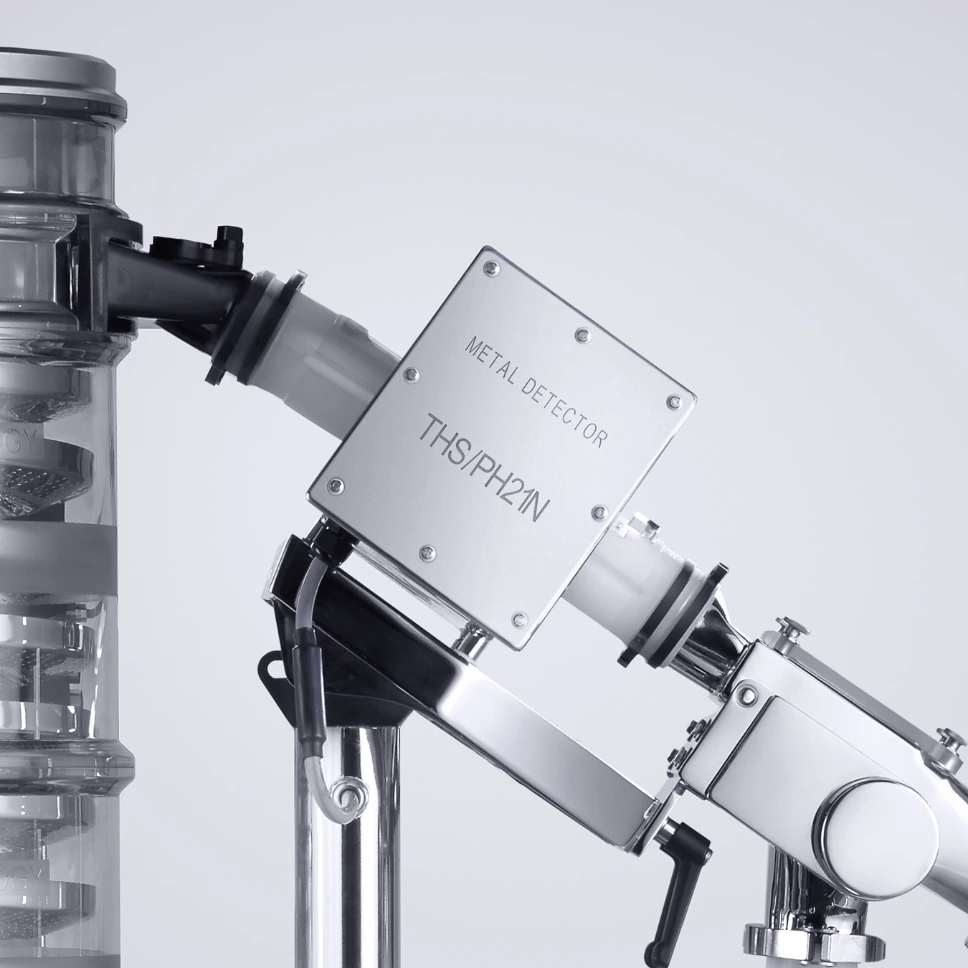

| Available Metal Detector | Ceia THS/PH21 N, Lock Insight |
| Outlet Chute | TC ASME BPE 2,5", TC ISO 1127 DN50 |
| Accuracy Stainless Steel | 0,40 mm (CE), 0,50 mm (LI) |
| Accuracy Ferro | 0,25 mm (CE), 0,30 mm (LI) |
| Accuracy Non-Ferro | 0,30 mm (CE), 0,35 mm (LI) |
| Head Opening | Ø 68 mm |
| Capacity | |
|---|---|
| Minimum Product Size | Ø 4 mm, Microtabs: Ø 2 mm |
| Maximum Product Size | Ø 25 mm |
| Utilities | |
|---|---|
| Conveying Adjustment | Vibration Intensity |
| Self Emptying | Yes |
| Requested Air Extraction | Adjustable 150 - 200 m3/h - pressure drop 150 - 1500 Pa |
| Dust Extraction Connection | TC ISO 1127 DN50 |
| Requested Compressed Air | 80 - 350 l/min - Min. 4,5 bar |
| Compressed Air connection | KS4 |
| Power Supply | 110 V to 230 V ± 10 % |
| Frequency | 50 Hz / 60 Hz |
| Environment | |
|---|---|
| Containment Level | Dust Tight, Contained, High contained |
| Noise Level | <70 dB (A) |
| Operating Temperature | 15 - 25 °C |
| Maximum Relative Humidity | 60% |
| Material | |
|---|---|
| Inlet Chute | Flex Connect © (Ø56,3 mm) |
| Non-Metallic Contact Parts | Tritan MX 711 - POM C - Silicone |
| Metal Contact Parts | Stainless Steel 316L |
| Contact Parts Finishing | Ra ≤ 0,8 µm |
| Frame Parts | Stainless Steel 304 |
| Frame Finishing | Mirror Polished |
| Frame mounted on wheels | Yes |
| IQ-OQ Protocol | Available |
| Material Certificates | Available |
| Application | |
|---|---|
| Function | Dedusting, Metal detection |
| Product type | Tablet |
| Application Area | Manufacturing |
