Automatic tablet testing for IPC

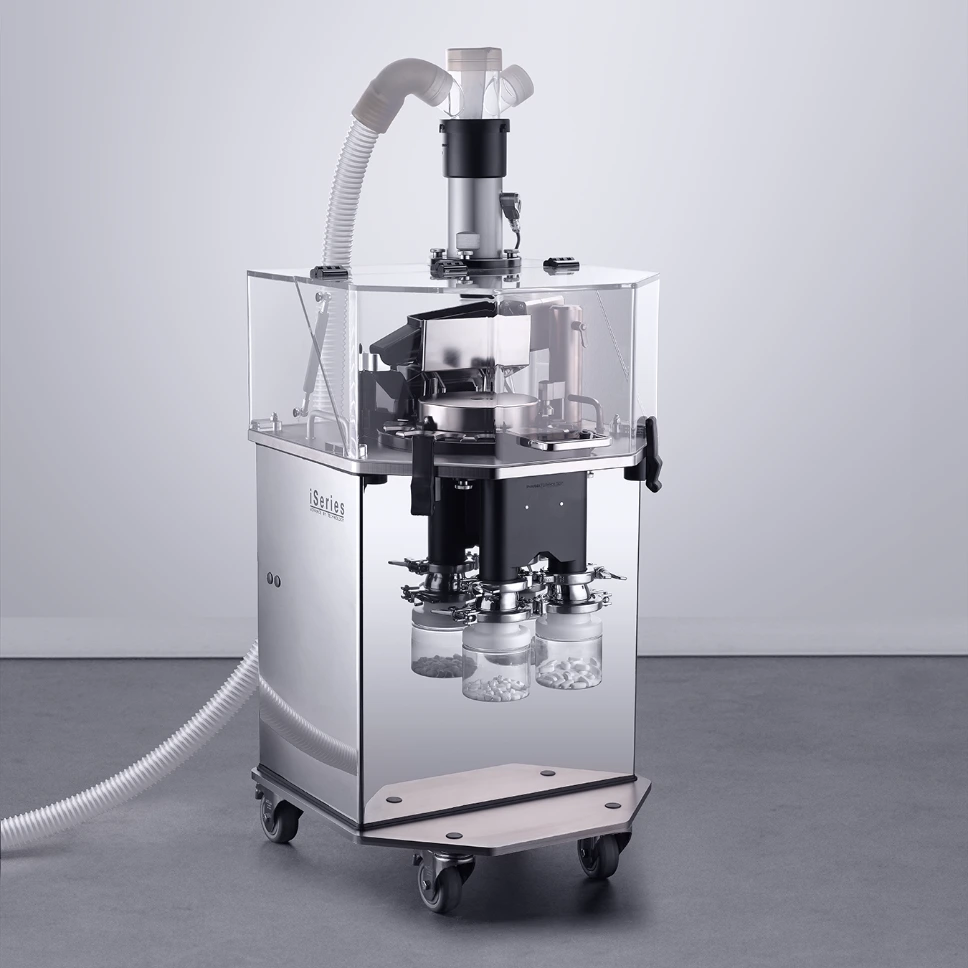

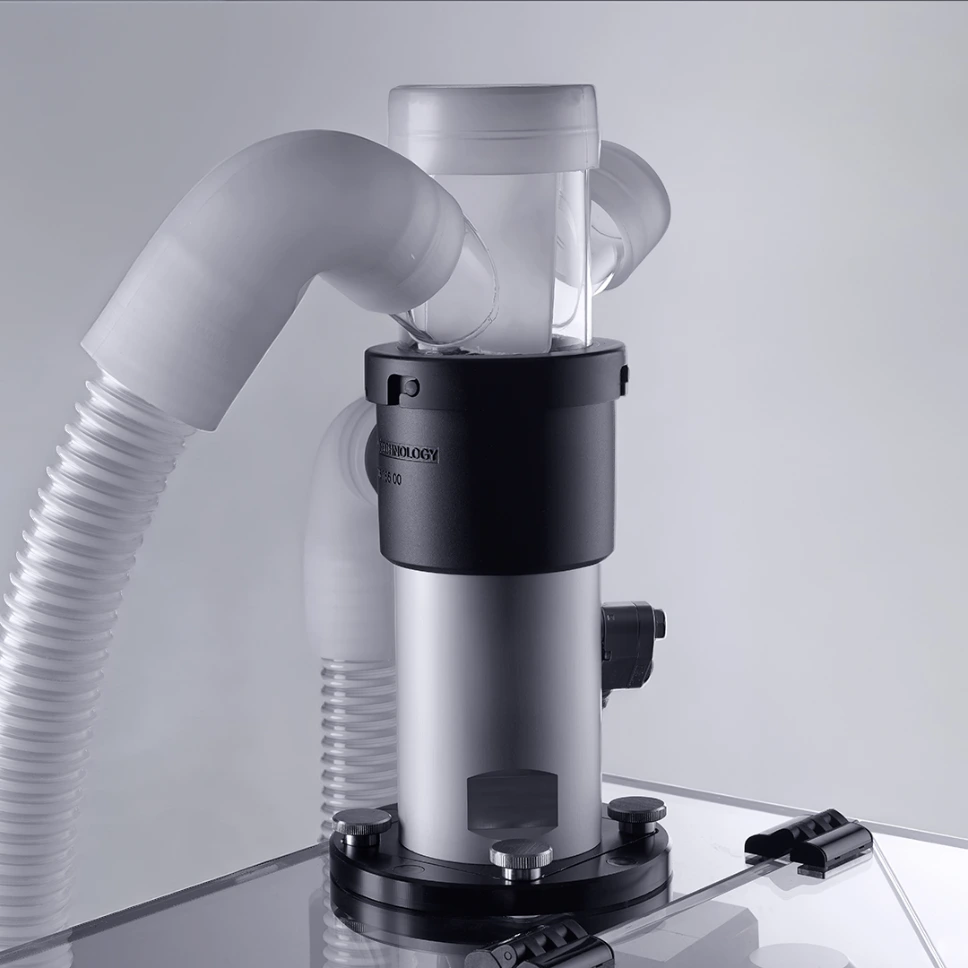

This tablet testing unit is designed with strict separation between dust, fragments, and the production flow, making it ideal for continuous manufacturing environments. Tablets are sampled directly from the press and transported via vacuum through a flexible hose to the tester, where each parameter is verified against pre-programmed recipes.
The tester’s design prioritizes easy cleaning and safe maintenance, featuring a complete separation between the product zone and mechanical/electrical components. All parts are fully accessible and tool-free to disassemble, streamlining service and ensuring maximum hygiene.
The system is also available in Containment ≤ OEB4.
Alternative Products
These other products might interest you
Specifications
| Physical properties | |
|---|---|
| Packaging | Wooden Box |
| Netto weight | 80 kg |
| Floor Dimensions | 490 mm x 490 mm |
| Inlet Height | 1165 mm |
| Capacity | |
|---|---|
| Minimum Product Size | Ø 4 mm |
| Maximum Product Size | Ø 25 mm |
| Utilities | |
|---|---|
| Requested Air Extraction | Between 120 - 200 m3/h |
| Dust Extraction Connection | Flex Connect © (Ø56,3 mm) |
| Requested Compressed Air | 80 - 350 l/min - Min. 4,5 bar |
| Compressed Air connection | KS4 |
| Power Supply | 100 to 240 VAC ± 10 % |
| Frequency | 50 Hz / 60 Hz |
| Samples Conveying | Dust-Tight Vacuum Conveying (optional Venturi) |
| Environment | |
|---|---|
| Containment Level | Dust Tight, Contained |
| Operating Temperature | 15 - 25 °C |
| Maximum Relative Humidity | 60% |
| Material | |
|---|---|
| Metal Contact Parts | Stainless Steel 316L, Aluminum with Surface treatment |
| Inlet Chute | Mini Flex Connect © (Ø42 mm) |
| Non-Metallic Contact Parts | POM C - PU - Silicone |
| Contact Parts Finishing | Ra ≤ 0,8 µm |
| Frame Parts | Stainless Steel 304 |
| Frame Finishing | Mirror Polished |
| Frame mounted on wheels | Yes |
| IQ-OQ Protocol | Available |
| Material Certificates | Available |
| Application | |
|---|---|
| Application Area | R&D, Manufacturing |
| Product type | Tablet |
| Function | Quality control |
| Weight Measurement | |
|---|---|
| Weighing cell | Sartorious WZA224-L |
| Weighing unit | 1 mg/0,1 mg (adjustable) |
| Weighing range | 10 mg - 50 g |
| Weighing accuracy | ± 1 mg in stable environment |
| Thickness Measurement | |
|---|---|
| Drive | Stepper-Motor |
| Measurement Principle | Magnetic Sensor |
| Measurement Unit | mm (inch) |
| Measurement Range | 3 - 18 mm |
| Measurement Accuracy | ± 0,05 mm |
| Hardness Measurement | |
|---|---|
| Drive | Stepper-Motor |
| Measurement Principle | Strain measurement strip (DMS) |
| Measurement Range | 4 - 400 N, extended 8 - 800 N |
| Measurement Accuracy | ± 2 N (with 800 N ± 4 N) |
| Force Measurement | Load measurement cell |
| Force Units | N (Kp, Sc) |
| Force Increase | 250 N/s |
| Work Speed (Pressure Jaw) | 0,35 mm/s |
| Approach and Return Speed (Pressure Jaw) | 8,5 - 17 mm/s adjustable |
| Diameter Measurement | |
|---|---|
| Drive | Stepper-Motor |
| Measurement Principle | Stepper-Motor |
| Measurement Unit | mm (inch) |
| Measurement Range | 3 - 25 mm |
| Measurement Range (Oblong) | 5 - 20 mm |
| Measurement Accuracy | ± 0,1 mm |
