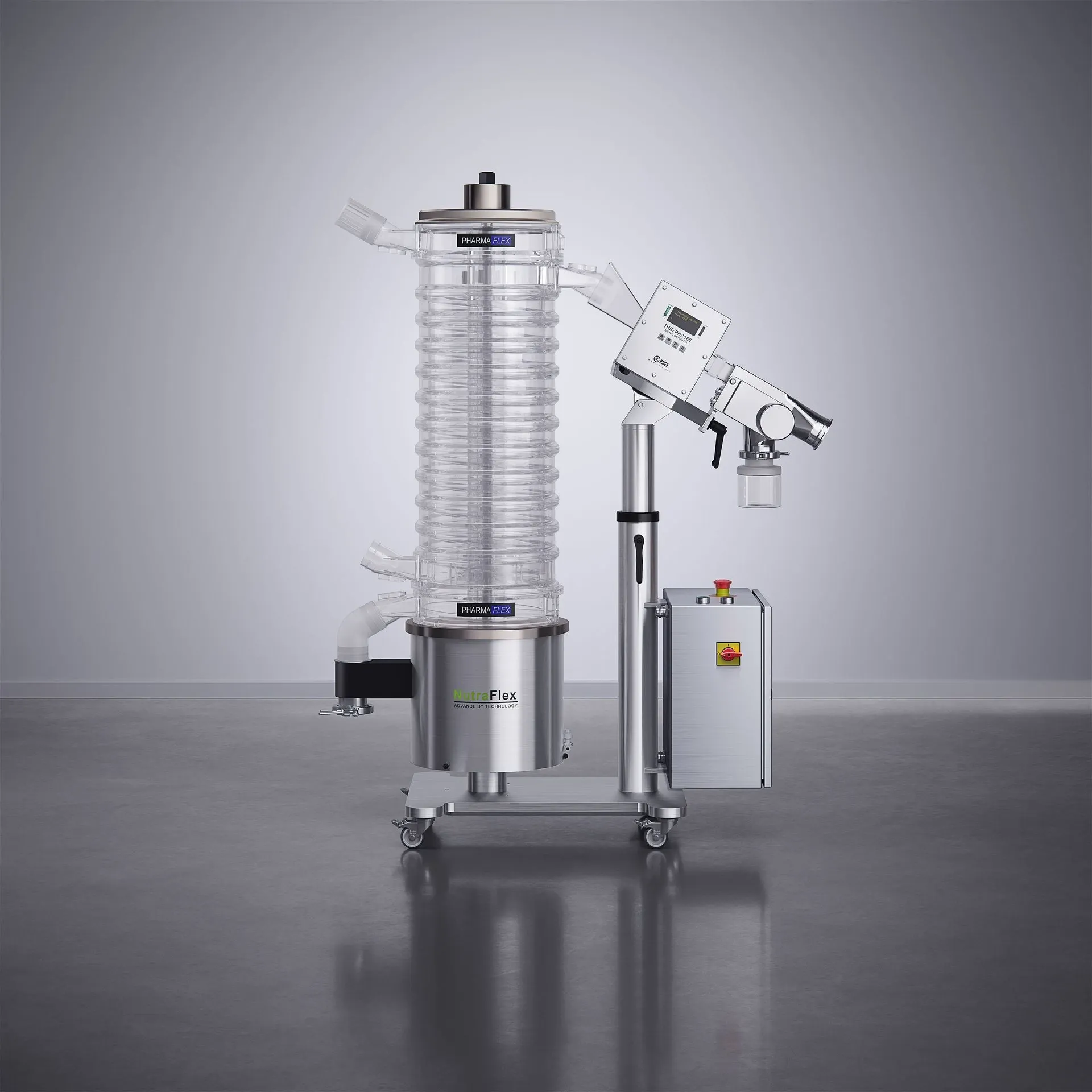

Deduster for Food supplements

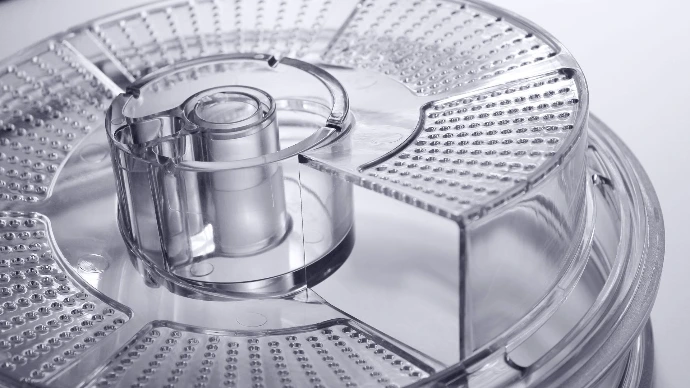

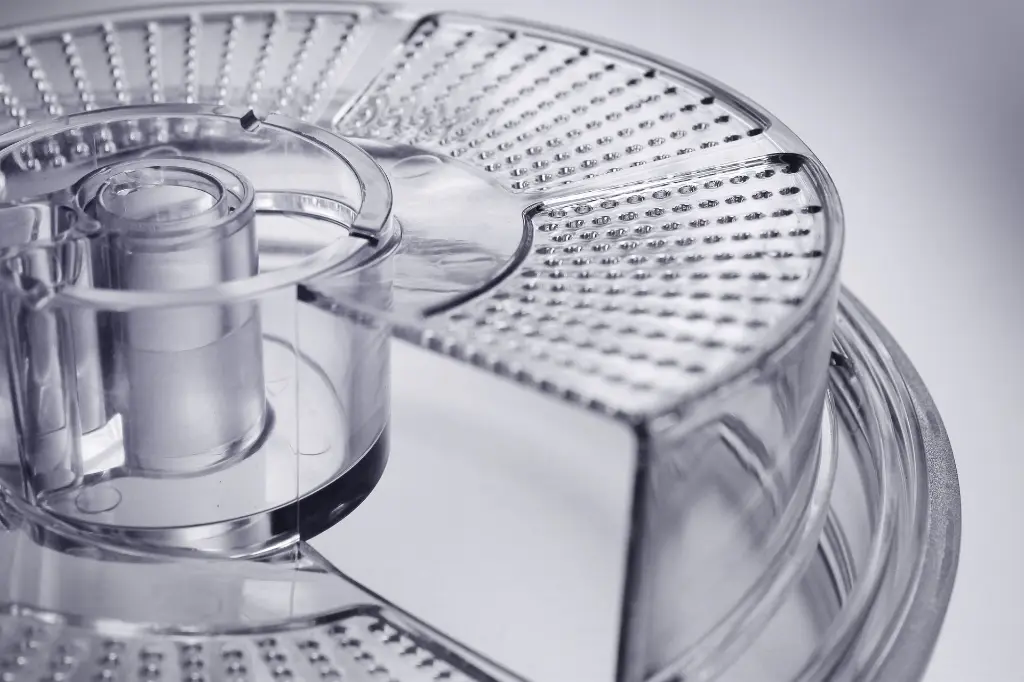

The NutraFlex is a tablet deduster specially developed to meet nutraceutical production needs. The solution brings together all the expertise from the pharmaceutical industry while offering efficiency and cost orientation for the nutraceutical market. This unit is equipped with a transparent segmented spiral, giving a 360° view
of the tablet’s process.
The segments are made of Tritan Copolyester, which was chosen for its robustness and easy maintenance. The technology combining enlarged circumferential dust extraction channels and central air jets on the tablets provides a very efficient dedusting while ensuring high throughput. Utmost care has been taken to make it as user-friendly as possible, eliminating the need for tooling.
Available Accessories
Check out all optional equipment !
Alternative Products
These other products might interest you
Specifications
| Physical properties | |
|---|---|
| Elevation height | 250, 500 |
| Packaging | Wooden Box |
| Netto weight | 195 kg |
| Floor Dimensions | 480 mm x 755 mm |
| Inlet Height | 460 mm |
| Metal Detection | |
|---|---|
| Available Metal Detector | Ceia THS/PH21 EE |
| Outlet Chute | TC ASME BPE 2,5" |
| Head Opening | 100 mm x 40 mm (CE) |
| Accuracy Stainless Steel | 0,50 mm |
| Accuracy Ferro | 0,30 mm |
| Accuracy Non-Ferro | 0,35 mm |
| Capacity | |
|---|---|
| Minimum Product Size | Ø 4 mm |
| Maximum Product Size | Ø 25 mm |
| Utilities | |
|---|---|
| Conveying Adjustment | Vibration Intensity |
| Self Emptying | Yes |
| Requested Air Extraction | Adjustable 150 - 200 m3/h - pressure drop 150 - 500 Pa |
| Dust Extraction Connection | TC ISO 1127 DN50 |
| Requested Compressed Air | 40 - 80 l/min - Min. 4,5 bar |
| Compressed Air connection | Ø 6 mm |
| Power Supply | 110 V to 230 V ± 10 % |
| Frequency | 50 Hz / 60 Hz |
| Environment | |
|---|---|
| Noise Level | <68 dB (A) |
| Operating Temperature | 15 - 25 °C |
| Maximum Relative Humidity | 60% |
| Containment Level | Open design |
| Material | |
|---|---|
| Inlet Chute | Flex Connect © (Ø56,3 mm) |
| Non-Metallic Contact Parts | Tritan MX 711 - POM C - Silicone |
| Metal Contact Parts | Stainless Steel 316L |
| Contact Parts Finishing | Ra ≤ 0,8 µm |
| Frame Parts | Stainless Steel 304 |
| Frame Finishing | Brushed 320 |
| Frame mounted on wheels | Yes |
| IQ-OQ Protocol | Available |
| Material Certificates | Available |
| Application | |
|---|---|
| Function | Dedusting, Metal detection |
| Product type | Tablet |
| Application Area | Manufacturing |
