Efficient and precise
lubrication application

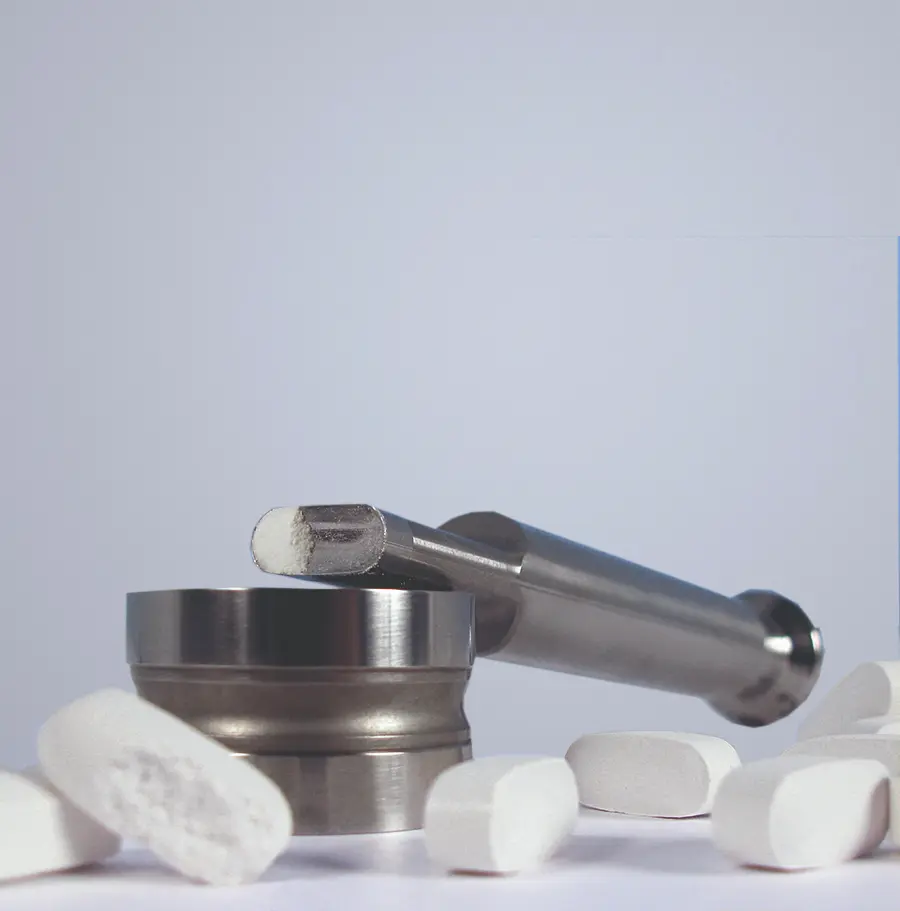

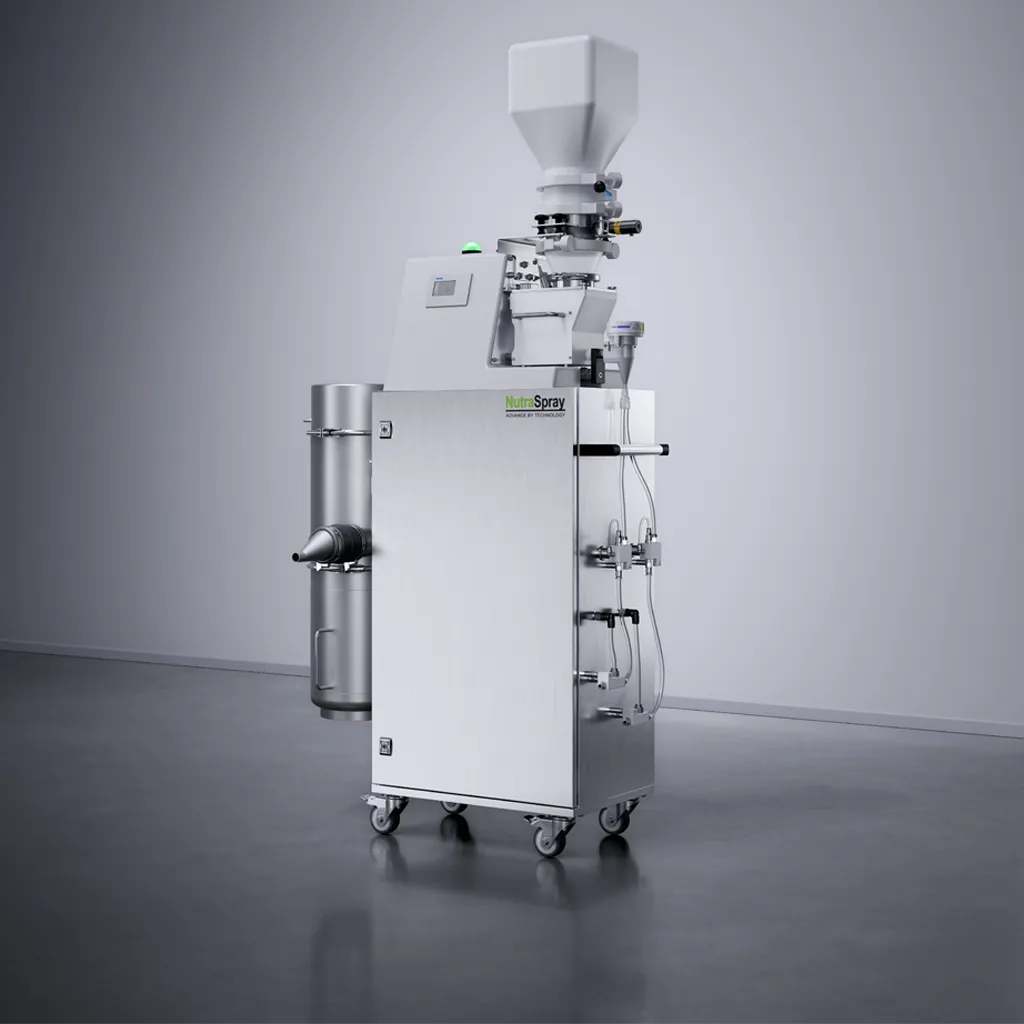

The NutraSpray is an ergonomic lubrication system designed to apply dry lubricant directly onto the punch face and die wall of your tablet press. It ensures a consistent and verifiable application across the product’s surface, supporting high-quality tablet production.
Alternative Products
These other products might interest you
Specifications
| Physical properties | |
|---|---|
| Packaging | Wooden Box |
| Netto weight | 180 kg |
| Floor Dimensions | 400 mm x 870 mm |
| Capacity | |
|---|---|
| Maximum Product Size | Ø 28 mm |
| Utilities | |
|---|---|
| Conveying Adjustment | Dosing Screw Rotation Speed |
| Requested Compressed Air | 450 - 600 l/min - Min. 6 bar |
| Compressed Air connection | KS4 |
| Power Supply | 100 to 240 VAC ± 10 % |
| Frequency | 50 Hz / 60 Hz |
| Environment | |
|---|---|
| Noise Level | <80 dB (A) |
| Operating Temperature | 15 - 25 °C |
| Maximum Relative Humidity | 30% |
| Containment Level | Open design |
| Material | |
|---|---|
| Non-Metallic Contact Parts | POM C, PU, Silicone |
| Metal Contact Parts | Stainless Steel 316L |
| Contact Parts Finishing | Ra ≤ 0,8 µm |
| Frame Parts | Stainless Steel 304 |
| Frame Finishing | Brushed 320 |
| Frame mounted on wheels | Yes |
| IQ-OQ Protocol | Available |
| Material Certificates | Available |
| Application | |
|---|---|
| Product type | Tablet |
| Function | Lubrication |
| Application Area | Manufacturing |
| Lubrication | |
|---|---|
| Dispensing System | For closed container refill |
| Spraying range | 1,5 - 15 g/min |
Frequently asked questions
Pharma Technology designs and manufactures advanced process equipment for solid dose pharmaceutical production, including tablet dedusters, capsule polishers, metal detection systems, in-process control solutions, and sorting equipment. All our machines are developed to support high efficiency, accuracy, and compliance with international quality standards.
Yes. Most of our solutions are modular and available in different heights, containment levels, and with several options. Our team can help you configure the right setup for your specific throughput, space, or regulatory requirements.
We provide full life-cycle support: installation and commissioning, on-site training, preventive maintenance, spare parts, and remote troubleshooting. Our global service network ensures that your equipment remains reliable and compliant throughout its operating life.
