Robust, user-friendly design

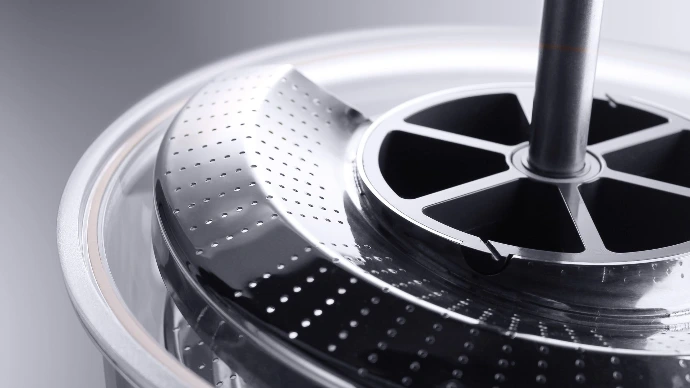

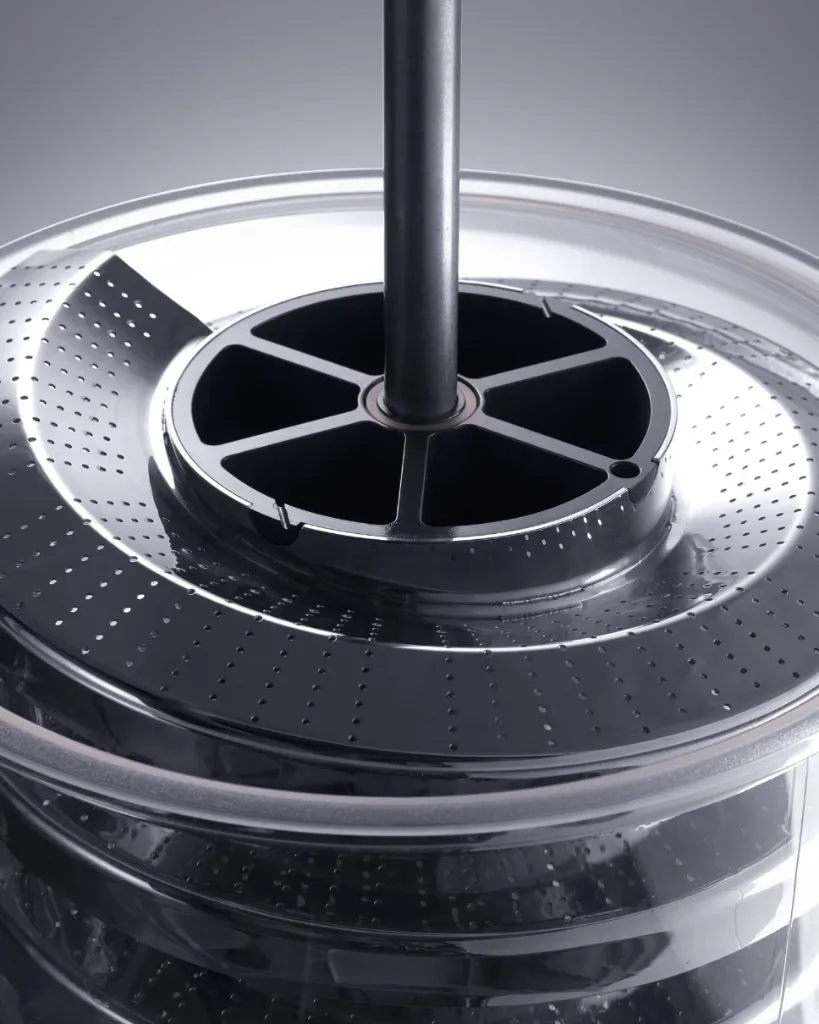

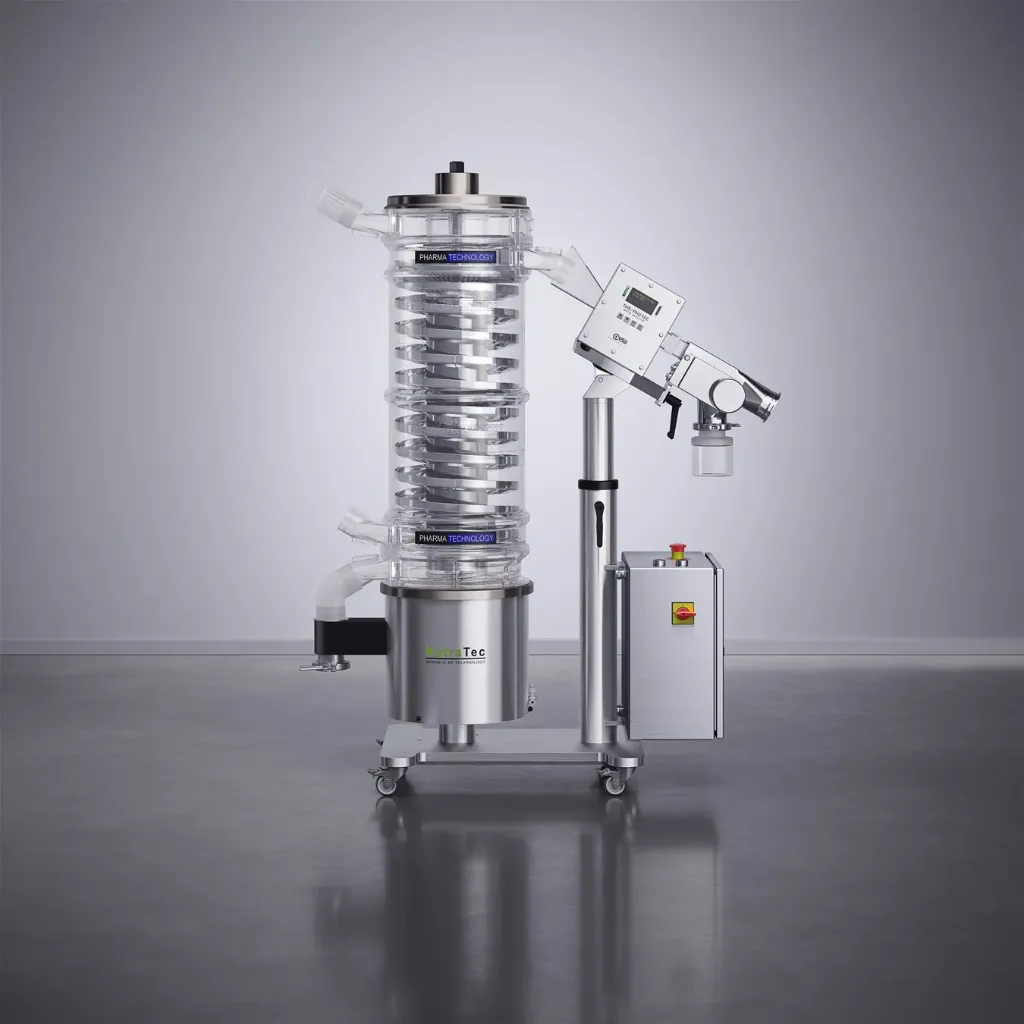

The NutraTec tablet deduster is tailored for nutraceutical production, combining pharmaceutical expertise with efficiency and cost-effectiveness. Its segmented 316L stainless steel spiral and fully transparent cover provide a durable design and direct visibility of the tablet process, while the simplified tool-free construction makes cleaning and maintenance fast and easy.
High-efficiency dedusting
Enlarged circumferential dust extraction channels paired with central air jets remove excess powder efficiently while maintaining high throughput. This design ensures consistent, high-quality dedusting across all tablet types.
Available Accessories
Check out all optional equipment !
Alternative Products
These other products might interest you
Specifications
| Physical properties | |
|---|---|
| Packaging | Wooden Box |
| Netto weight | 170 kg |
| Floor Dimensions | 480 mm x 755 mm |
| Inlet Height | 597 mm |
| Elevation height | 500 |
| Metal Detection | |
|---|---|
| Available Metal Detector | Ceia THS/PH21 EE |
| Outlet Chute | TC ASME BPE 2,5" |
| Head Opening | 100 mm x 40 mm (CE) |
| Accuracy Stainless Steel | 0,50 mm |
| Accuracy Ferro | 0,30 mm |
| Accuracy Non-Ferro | 0,35 mm |
| Capacity | |
|---|---|
| Minimum Product Size | Ø 4 mm |
| Maximum Product Size | Ø 25 mm |
| Utilities | |
|---|---|
| Conveying Adjustment | Vibration Intensity |
| Self Emptying | Yes |
| Requested Air Extraction | Adjustable 150 - 200 m3/h - pressure drop 150 - 500 Pa |
| Dust Extraction Connection | TC ISO 1127 DN50 |
| Requested Compressed Air | 40 - 80 l/min - Min. 4,5 bar |
| Compressed Air connection | Ø 6 mm |
| Power Supply | 110 V to 230 V ± 10 % |
| Frequency | 50 Hz / 60 Hz |
| Environment | |
|---|---|
| Noise Level | <70 dB (A) |
| Operating Temperature | 15 - 25 °C |
| Maximum Relative Humidity | 60% |
| Containment Level | Open design |
| Material | |
|---|---|
| Inlet Chute | Flex Connect © (Ø56,3 mm) |
| Non-Metallic Contact Parts | Tritan MX 711 - POM C - Silicone |
| Metal Contact Parts | Stainless Steel 316L |
| Contact Parts Finishing | Ra ≤ 0,8 µm |
| Frame Parts | Stainless Steel 304 |
| Frame Finishing | Brushed 320 |
| Frame mounted on wheels | Yes |
| IQ-OQ Protocol | Available |
| Material Certificates | Available |
| Application | |
|---|---|
| Function | Dedusting, Metal detection |
| Product type | Tablet |
| Application Area | Manufacturing |
