Integrated polishing, metal detection & capsule testing
The IPC (In Process Control) is an innovative machine that includes sophisticated engineering. It provides unparalleled flexibility while meeting superior standards for output and quality of dedusting, metal detection, and high precision In Process Control tester for measuring the physical parameters of the product (weight +/-0,1 mg and thickness +/-0,1 mm).

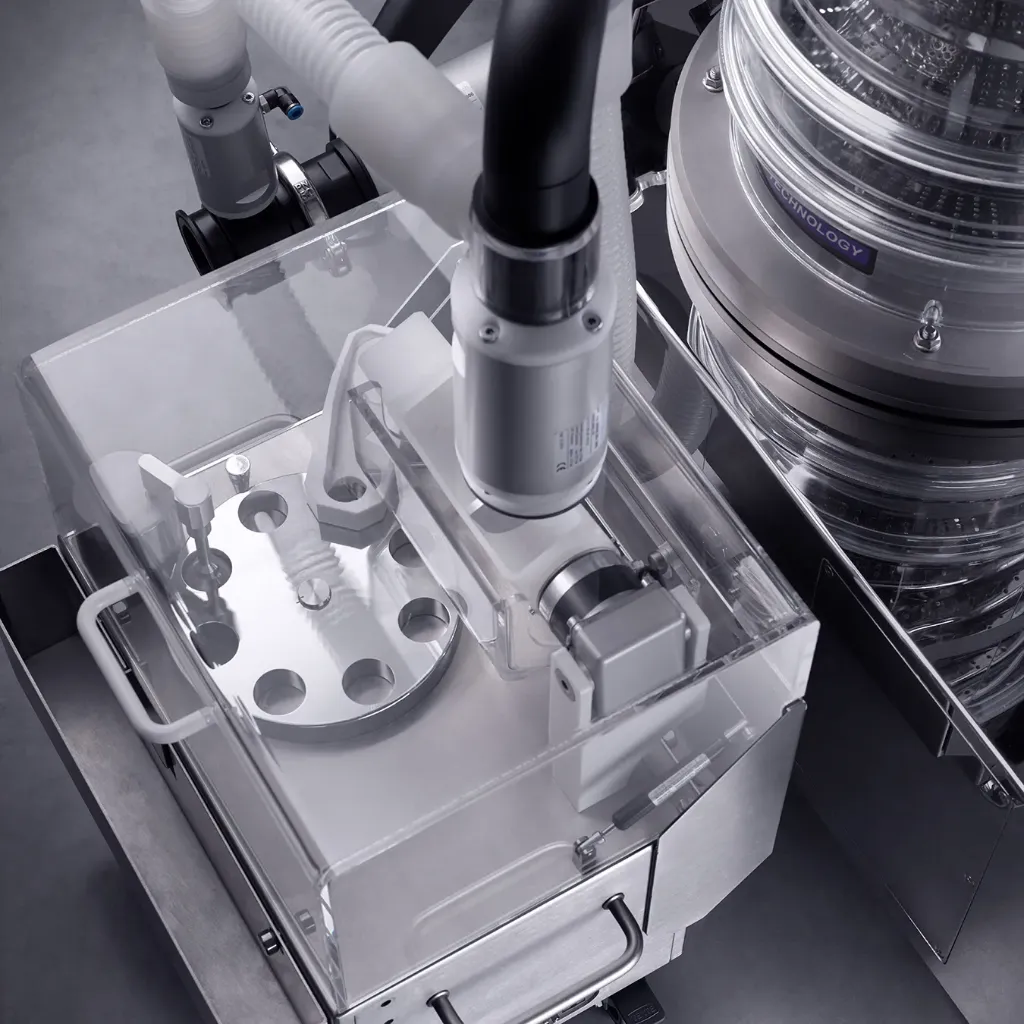

Our iCaps integrate a 2 parameters tablet tester that allows you to automatically take samples from your production and to continuously monitor weight and thickness.
Real-Time process control & compliance
The results of the testing can be used to regulate your capsule filling machine. The stand-alone version allows to monitor simpler or older filling machines that do not have the regulation loop and may benefit from the stand-alone tester, generating alarms in case of violation of product specifications, while automatically creating a quality batch report.
All Pharmacopoeia standards are in the product book.
The equipment is available in “DT” Dust Tight and “C” Containment (≤OEB4) versions.
The software is CFR 21 Part 11 compliant and includes user management and the possibility to collect data on a USB stick.
Alternative Products
These other products might interest you
Specifications
| Physical properties | |
|---|---|
| Packaging | Wooden Box |
| Netto weight | 60 kg |
| Floor Dimensions | 465 mm x 385 mm |
| Inlet Height | 970 mm |
| Capacity | |
|---|---|
| Minimum Product Size | Ø 4 mm, Caps 4 |
| Maximum Product Size | Ø 25 mm, Caps 00 |
| Utilities | |
|---|---|
| Requested Air Extraction | Between 120 - 200 m3/h |
| Dust Extraction Connection | Flex Connect © (Ø56,3 mm) |
| Requested Compressed Air | 80 - 350 l/min - Min. 4,5 bar |
| Compressed Air connection | KS4 |
| Power Supply | 100 to 240 VAC ± 10 % |
| Frequency | 50 Hz / 60 Hz |
| Samples Conveying | Dust-Tight Vacuum Conveying (optional Venturi) |
| Environment | |
|---|---|
| Operating Temperature | 15 - 25 °C |
| Maximum Relative Humidity | 60% |
| Material | |
|---|---|
| Metal Contact Parts | Stainless Steel 316L, Aluminum with Surface treatment |
| Inlet Chute | Mini Flex Connect © (Ø42 mm) |
| Non-Metallic Contact Parts | POM C - PU - Silicone |
| Contact Parts Finishing | Ra ≤ 0,8 µm |
| Frame Parts | Stainless Steel 304 |
| Frame Finishing | Mirror Polished |
| Frame mounted on wheels | Yes |
| IQ-OQ Protocol | Available |
| Material Certificates | Available |
| Application | |
|---|---|
| Product type | Tablet, Capsule |
| Application Area | R&D, Manufacturing |
| Function | Quality control |
| Weight Measurement | |
|---|---|
| Weighing cell | Sartorious WZA224-L |
| Weighing unit | 1 mg/0,1 mg (adjustable) |
| Weighing range | 10 mg - 50 g |
| Weighing accuracy | ± 1 mg in stable environment |
| Length Measurement | |
|---|---|
| Measurement Principle | Stepper-Motor |
| Measurement Unit | mm (inch) |
| Measurement Range | 3 - 25 mm |
| Measurement Accuracy | ± 0,1 mm |
| Thickness Measurement | |
|---|---|
| Drive | Stepper-Motor |
| Measurement Principle | Magnetic Sensor |
| Measurement Unit | mm (inch) |
| Measurement Range | 3 - 18 mm |
| Measurement Accuracy | ± 0,05 mm |
