Tailored for
nutraceutical production

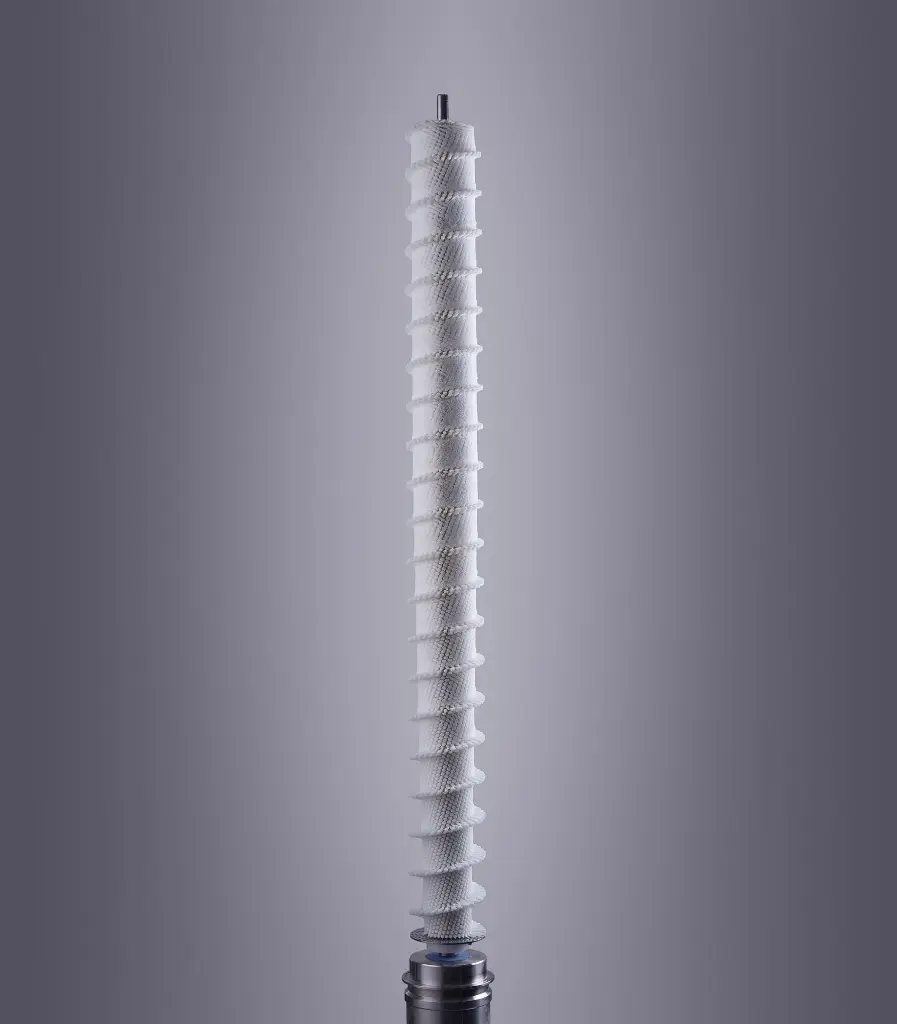

NutraCaps is designed specifically for nutraceutical needs, combining pharmaceutical-grade expertise with a cost-effective, high-output approach. Its optimized brush design delivers consistent, high-quality polishing while supporting fast production rates.
Fast processing
with user-friendly operation
Capsules are conveyed, cleaned, and polished within seconds thanks to the rotating brush and an efficient dust extraction system that removes powder excess immediately. The tool-free design simplifies handling, ensuring quick changeovers across diverse product ranges.
Available Accessories
Check out all optional equipment !
Alternative Products
These other products might interest you
Specifications
| Physical properties | |
|---|---|
| Packaging | Wooden Box |
| Netto weight | 170 kg |
| Floor Dimensions | 480 mm x 755 mm |
| Inlet Height | 459 mm |
| Elevation height | 1000 |
| Metal Detection | |
|---|---|
| Available Metal Detector | Ceia THS/PH21 EE |
| Outlet Chute | TC ASME BPE 2,5" |
| Head Opening | 100 mm x 40 mm (CE) |
| Accuracy Stainless Steel | 0,50 mm |
| Accuracy Ferro | 0,30 mm |
| Accuracy Non-Ferro | 0,35 mm |
| Capacity | |
|---|---|
| Minimum Product Size | Caps 5 |
| Maximum Product Size | Caps 000 |
| Utilities | |
|---|---|
| Conveying Adjustment | Brush Rotation Speed |
| Self Emptying | Yes |
| Requested Air Extraction | Adjustable 110 - 150 m3/h - pressure drop 150 - 2000 Pa |
| Dust Extraction Connection | TC ISO 1127 DN50 |
| Requested Compressed Air | N/A or 350 l/min - Min. 4,5 bar |
| Compressed Air connection | Ø 8 mm |
| Power Supply | 110 V to 230 V ± 10 % |
| Frequency | 50 Hz / 60 Hz |
| Environment | |
|---|---|
| Noise Level | <68 dB (A) |
| Operating Temperature | 15 - 25 °C |
| Maximum Relative Humidity | 60% |
| Containment Level | Open design |
| Material | |
|---|---|
| Inlet Chute | TC ISO 1127 DN50 |
| Non-Metallic Contact Parts | POM C - Nylon - Silicone |
| Metal Contact Parts | Stainless Steel 316L |
| Contact Parts Finishing | Ra ≤ 0,8 µm |
| Frame Parts | Stainless Steel 304 |
| Frame Finishing | Brushed 320 |
| Frame mounted on wheels | Yes |
| IQ-OQ Protocol | Available |
| Material Certificates | Available |
| Application | |
|---|---|
| Function | Polishing, Metal detection |
| Product type | Capsule |
| Application Area | Manufacturing |
Frequently asked questions
Pharma Technology designs and manufactures advanced process equipment for solid dose pharmaceutical production, including tablet dedusters, capsule polishers, metal detection systems, in-process control solutions, and sorting equipment. All our machines are developed to support high efficiency, accuracy, and compliance with international quality standards.
Yes. Most of our solutions are modular and available in different heights, containment levels, and with several options. Our team can help you configure the right setup for your specific throughput, space, or regulatory requirements.
We provide full life-cycle support: installation and commissioning, on-site training, preventive maintenance, spare parts, and remote troubleshooting. Our global service network ensures that your equipment remains reliable and compliant throughout its operating life.
