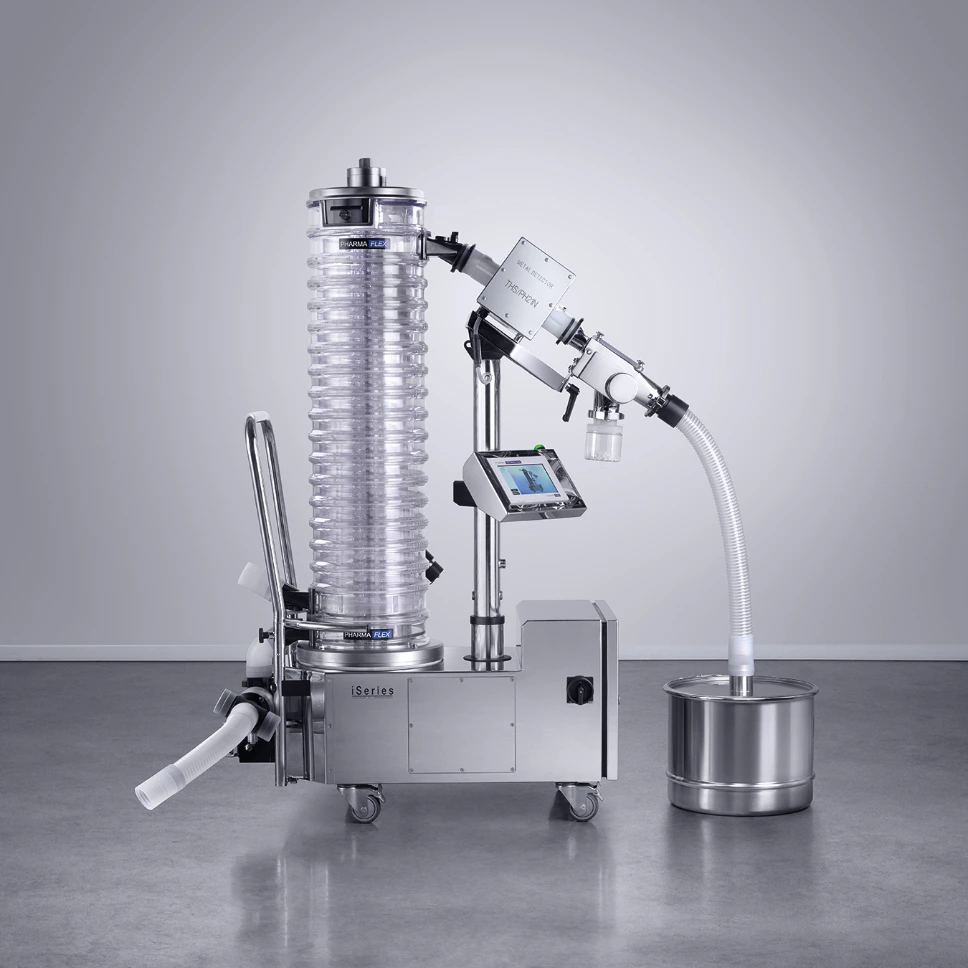

iFlex - Tablet deduster with polymer segments

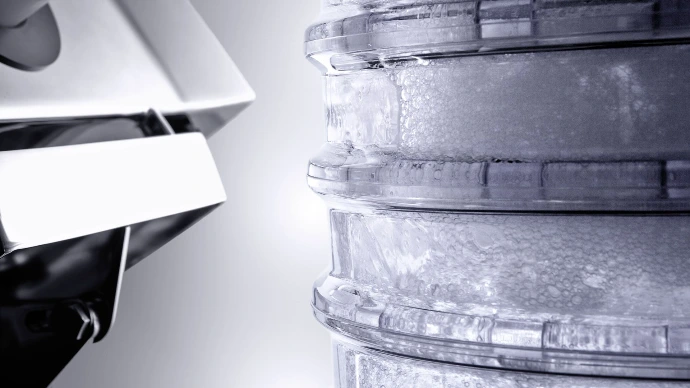

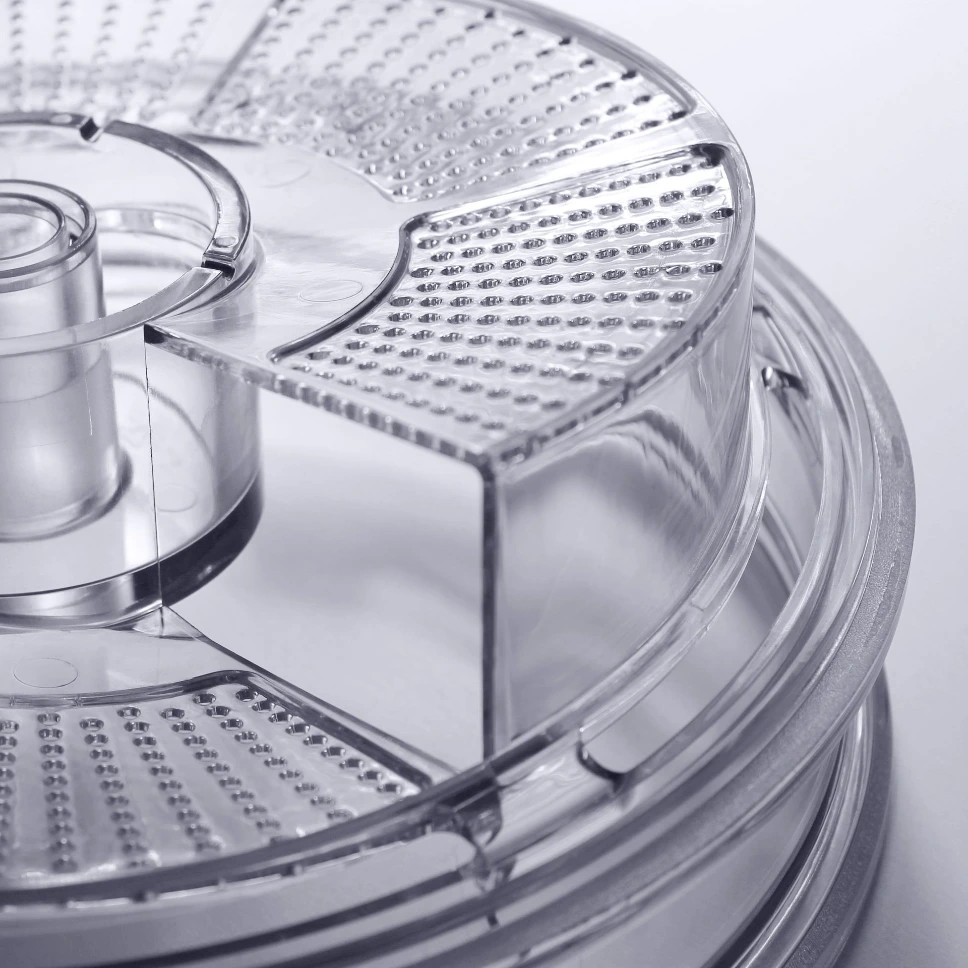

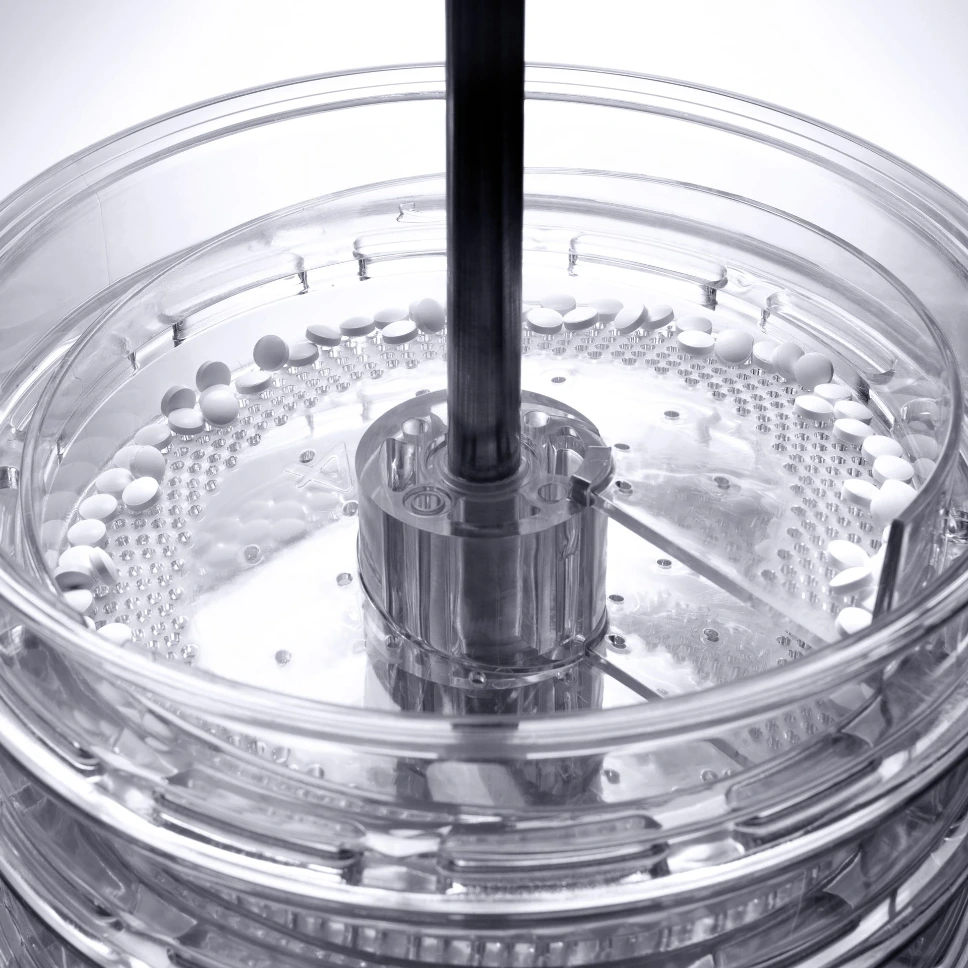

The iFlex features a modular, segmented spiral design made from Tritan Copolyester. Each segment is individually removable for easy cleaning and validation, offering robust and transparent construction for direct tablet viewing.


Key benefits

  • Patented “Dust Tight” dedusting and metal check - ATEX certified
  • 5 elevation heights from 500 mm to 1500 mm - Compact footprint
  • FDA-approved light components to handle and wash
  • Ergonomic, Efficient, Robust, Reliable
  • Quiet operation <69 dB(A)
  • No risk of cross contamination - Easy validation
  • Central HMI with OPC UA, CFR 21 Part 11 compliant

0.00 € 0.00 €

  • Available Metal Detector
  • Outlet Chute
  • Inlet Chute
  • Minimum Product Size
  • Maximum Product Size
  • Conveying Adjustment
  • Self Emptying
  • Requested Air Extraction
  • Dust Extraction Connection
  • Compressed Air connection
  • Requested Compressed Air
  • Noise Level
  • Power Supply
  • Frequency
  • Non-Metallic Contact Parts
  • Metal Contact Parts
  • Contact Parts Finishing
  • Operating Temperature
  • Maximum Relative Humidity
  • Frame Parts
  • Frame Finishing
  • Frame mounted on wheels
  • IQ-OQ Protocol
  • Material Certificates
  • Packaging
  • Netto weight
  • Floor Dimensions
  • Inlet Height
  • Containment Level
  • Head Opening
  • Accuracy Stainless Steel
  • Accuracy Ferro
  • Accuracy Non-Ferro
  • Elevation height
  • Product type
  • Function
  • Application Area
Add to cart
Contact Us
Documents
iFlex - Brochure.pdf

Dust Tight transfer with patented Flex Connect

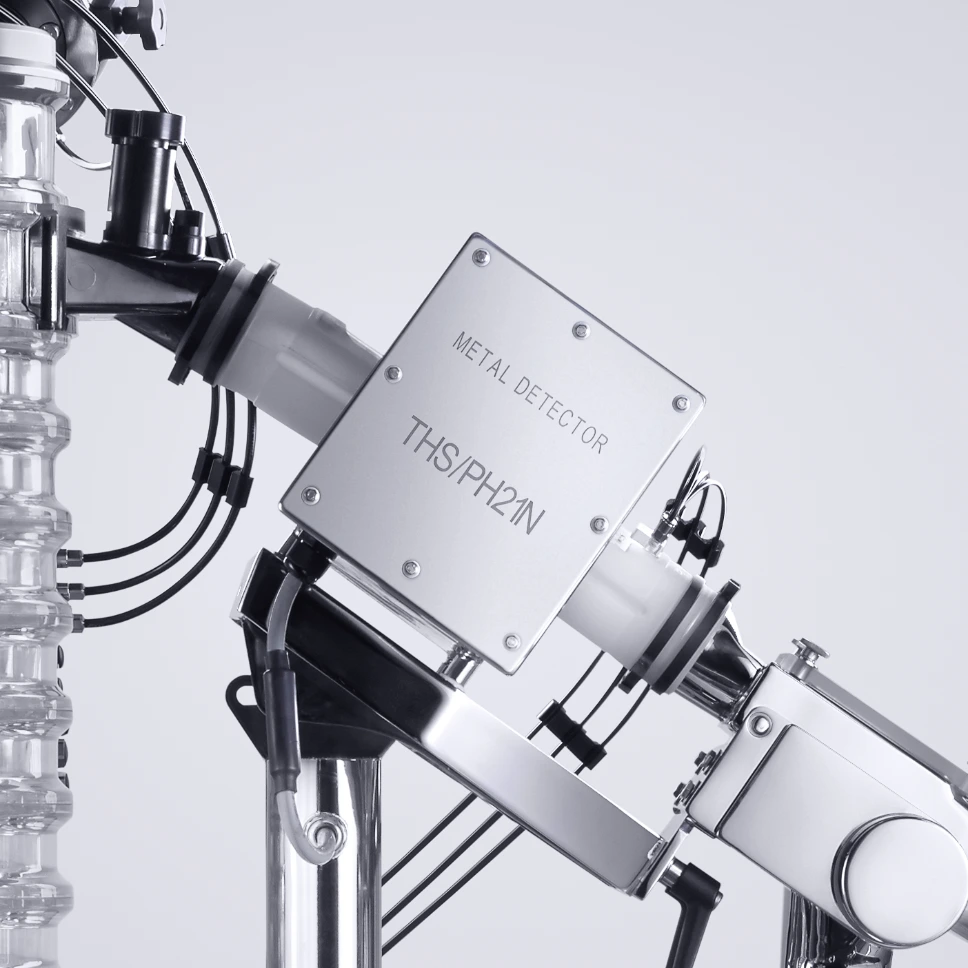

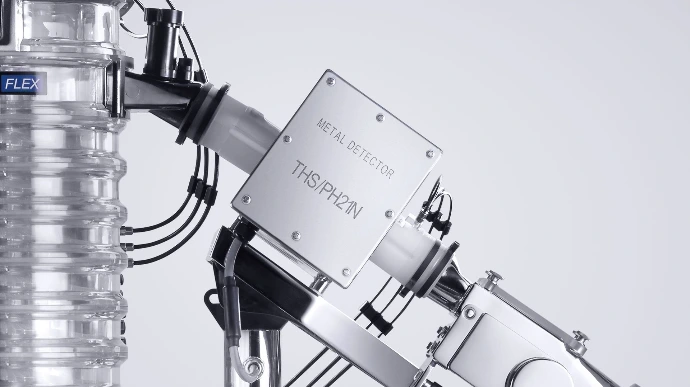

The Flex Connect metal check system provides a fully closed, Dust Tight transfer from deduster to drum without tri-clamps. Vibrating and non-vibrating sections are isolated to maintain detector accuracy, allowing detection of metallic particles as small as 0.4 mm. Test samples can be introduced safely without any contact between the operator and the product. All metal check parameters are monitored through the machine’s integrated HMI.

Modular design adaptable to full containment



Five conveying heights are available from 500 to 1500 mm. The Dust Tight version can be upgraded to “C” Containment or to “HC” High Containment ≤OEB5 with a washable execution. Pressure monitoring and failsafe security valves increase operator protection. Connectivity options can be added as needed, including diverters, samplers, IPC testers, and metal check interfaces.

Automated washing and
simplified maintenance



The High Containment WIP solution removes residual dust before disassembly, ensuring safe handling of potent products. Integrated pressure decay testing verifies system tightness before production. The streamlined, tool free design reduces parts and retention areas. Fully integrated wiring and piping create a compact machine footprint that helps save space in the production room.

Available Accessories

Check out all optional equipment !

Your Dynamic Snippet will be displayed here... This message is displayed because you did not provide enough options to retrieve its content.

Specifications

Physical properties
Elevation height 500, 750, 1000, 1250, 1500
Packaging Wooden Box
Netto weight 260 kg
Floor Dimensions 470 mm x 860 mm
Inlet Height 579 mm
Metal Detection
Available Metal Detector Ceia THS/PH21 N, Lock Insight
Outlet Chute TC ASME BPE 2,5", TC ISO 1127 DN50
Accuracy Stainless Steel 0,40 mm (CE), 0,50 mm (LI)
Accuracy Ferro 0,25 mm (CE), 0,30 mm (LI)
Accuracy Non-Ferro 0,30 mm (CE), 0,35 mm (LI)
Head Opening Ø 68 mm
Capacity
Minimum Product Size Ø 4 mm
Maximum Product Size Ø 25 mm
Utilities
Conveying Adjustment Vibration Intensity
Self Emptying Yes
Requested Air Extraction Adjustable 150 - 200 m3/h - pressure drop 150 - 1500 Pa
Dust Extraction Connection TC ISO 1127 DN50
Compressed Air connection KS4
Requested Compressed Air 80 - 350 l/min - Min. 4,5 bar
Power Supply 110 V to 230 V ± 10 %
Frequency 50 Hz / 60 Hz
Environment
Containment Level Dust Tight, Contained, High contained
Noise Level <68 dB (A)
Operating Temperature 15 - 25 °C
Maximum Relative Humidity 60%
Material
Inlet Chute Flex Connect © (Ø56,3 mm)
Non-Metallic Contact Parts Tritan MX 711 - POM C - Silicone
Metal Contact Parts Stainless Steel 316L
Contact Parts Finishing Ra ≤ 0,8 µm
Frame Parts Stainless Steel 304
Frame Finishing Mirror Polished
Frame mounted on wheels Yes
IQ-OQ Protocol Available
Material Certificates Available
Application
Function Dedusting, Metal detection
Product type Tablet
Application Area Manufacturing
